Two-component high thermal conductivity filling sealant (8.0 W/mK)
The JOMG 1980 thermal conductivity gel (8.0 W/mK) is a two-component, rapidly curing liquid thermal conductive gel gasket containing glass microspheres. It offers stable assembly dimensions with a minimum controllable thickness of 0.2 mm and is designed for thixotropic low-stress applications, providing enhanced thermal management for advanced automotive batteries, automotive electronics, and communication equipment.
product details
product presentation
The JOMG 1980 thermal conductivity gel (8.0 W/mK) is a two-component, rapidly curing liquid thermal conductive gel gasket containing glass microspheres. It offers stable assembly dimensions with a minimum controllable thickness of 0.2 mm and is designed for thixotropic low-stress applications, providing enhanced thermal management for advanced automotive batteries, automotive electronics, and communication equipment. Compared to traditional materials, it delivers superior reliability and reworkability; its automatically controlled feeding system significantly reduces waste and enables fully automated assembly, making it an ideal thermal interface material for Industry 4.0 applications.
characteristic
Mixed (thixotropic type)
Low Stress Application
easy operation
Accelerated Reaction
Low hardness with slight viscosity
Platinum catalysis, resulting in extremely low volatilization of siloxane compounds.
Complies with ROHS, halogen-free, and REACH certifications
Typical Application：
lithium cell automotive electronics
communications-equipment
Computers and Big Data Servers
Application between heat source and radiator
Product Specification Table：
| Color Part A | White | Visual | |
| Color Part B | Gray | Visual | |
| characteristic | Soft GEL | – | – |
| density | 4.3 | ASTM D792 | g/cm3 |
| Performance before curing | |||
| A:B | 100 : 100 | – | – |
| Mixed viscosity (2 rpm) | 380,000 | ASTM D2196 | cps |
| Shelf life @ 25°C | 9 month | ||
| Performance after curing | |||
| pigment | Gray | Visual | – |
| operate time | 40 mins /25℃ | ||
| Curing Conditions | 120 mins /25℃ | ||
| Curing Conditions | 10 mins /80℃ | ||
| Curing Conditions | 5 mins /100℃ | ||
| hardness | Shore 00 = 30 | ASTM D2240 | |
| tensile strength | 0.13 | ASTM D412 | MPa |
| elongation | 40 | ASTM D412 | % |
| end-use temperature | -60~200 | ℃ | |
| behaviour of electricity | |||
| punch through voltage | 7 | ASTM D149 | KV/mm |
| volume resistivity | 1*1011 | ASTM D257 | Ohm-cm |
| dielectric constant | 6.5 | ASTM D150 | (1KHz) |
| Flame Retardancy Grade | V-0, E547224 | UL 94 | 1mm |
| Thermal Properties | |||
| thermal conductivity | 8.0 | ASTM D5470 | W/m*K |
| Specific heat capacity | 1 | ASTM E1269 | J/g-K |
| BLT Minimum Thickness | 250 | Contains glass microspheres | μm |
| Low-molecular-weight cyclic compound ΣD3-D10 | 30 | ppm | |
packing specifications

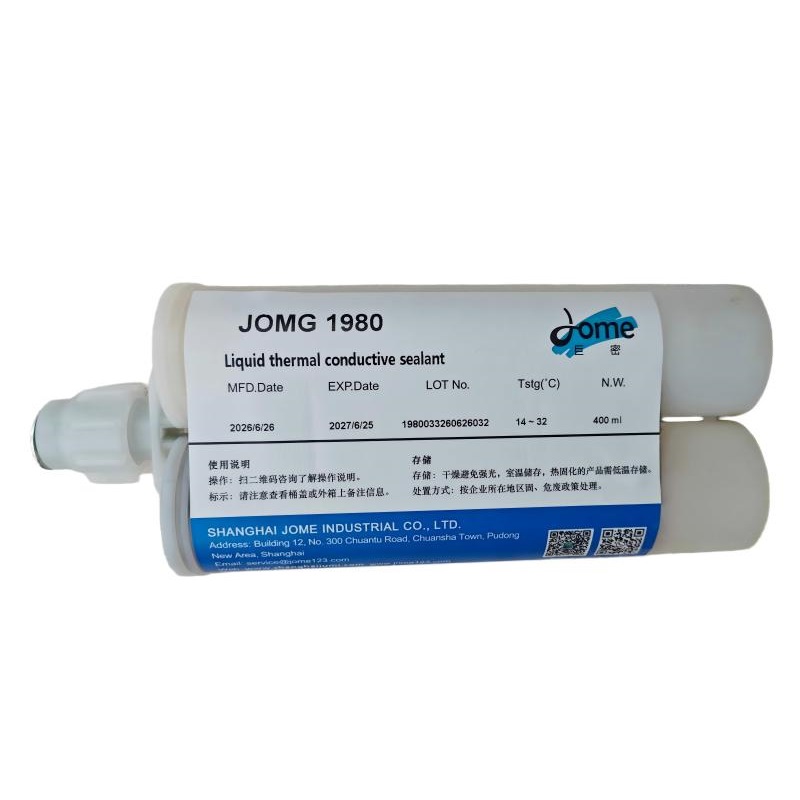

JOMG 1980 Liquid Thermal Conductive Sealant Gel, Procurement Code:
A 1980011, B 1980023, A+B double-tube, 1980033
50 ml per vial (A: 25 ml; B: 25 ml)
400/ml per vial (A: 200 ml; B: 200 ml)

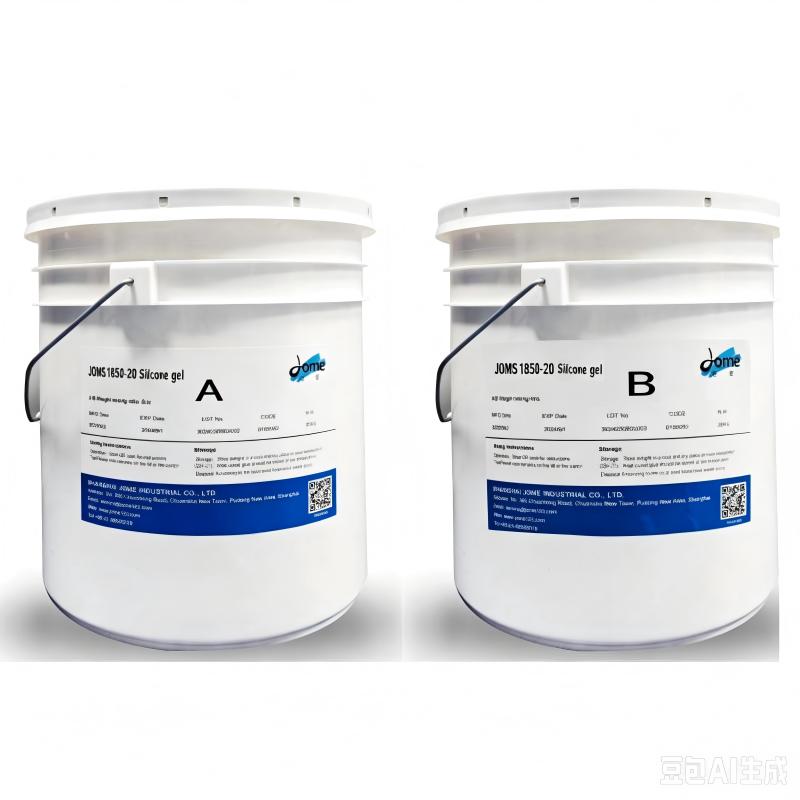

A: 30 kg / 5 gallons barrel
B: 30 kg per 5-gallon barrel
