Semiconductor packaging adhesive requirements: Semiconductor packaging is the critical process of transforming raw silicon wafers into finished, protected chips. Adhesives used in this process must meet rigorous standards: low stress, low Coefficient of Thermal Expansion (CTE), high dielectric strength, resistance to lead-free reflow soldering (260C), high reliability under High-Accelerated Stress Testing (HAST), zero outgassing, and compatibility with precision dispensing systems.

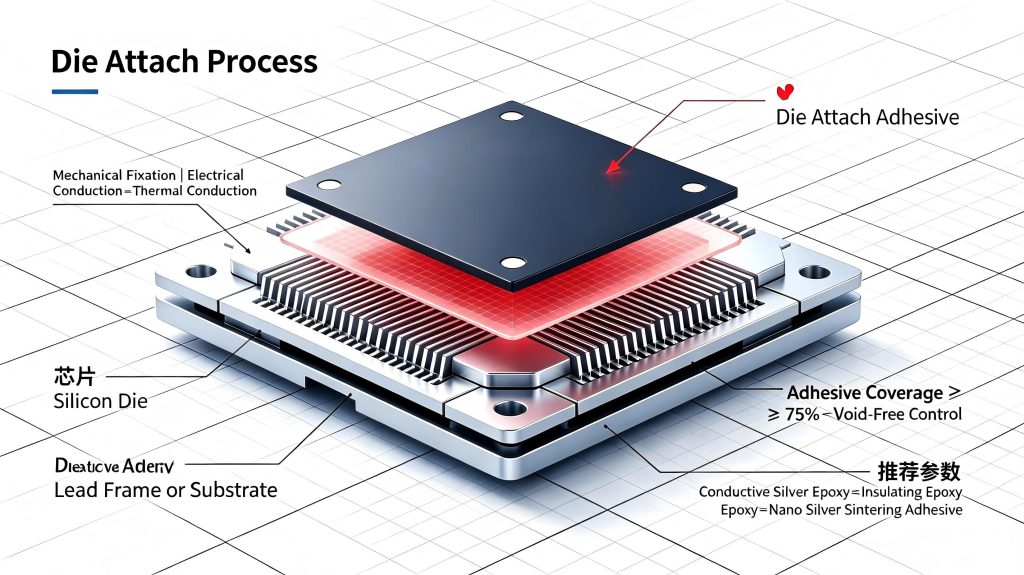

1. Die Attach Adhesives (DAA)
As a semiconductor packaging adhesive, a die attach material bonds the silicon die to lead frames, organic substrates, or ceramic substrates. As the first chemical barrier, it dictates thermal dissipation, mechanical coupling, and long-term joint reliability.
| Adhesive Category | Composition & Key Ingredients | Key Functions & Performance Metrics | Typical Applications & Package Types |
| Conductive Epoxy Silver Paste | Epoxy resin + high-purity silver flake filler | • High electrical & thermal conductivity • Curing: $150^\circ\text{C}$ – $180^\circ\text{C}$ / 30–60 min • Dispensing coverage: $\ge 75\%$ | Power ICs, Discrete Devices, IGBTs, MOSFETs, Leadframe packages |
| Non-Conductive Die Attach Adhesive | Pure epoxy resin system (no conductive fillers) | • High dielectric insulation • Low shrinkage & low warpage • Prevents leakage currents | Logic ICs, Analog Chips, Small Signal Semiconductors |
| Low-Temperature Curing DAA | Modified epoxy or acrylic chemistry | • Low temp cure ($80^\circ\text{C}$ – $120^\circ\text{C}$) • Prevents thermal damage to sensitive components | MEMS Sensors, CMOS Image Sensors, Ultra-thin Wafers |
| Sintering Nano-Silver Paste | Nano-scale silver particles | • Extreme thermal conductivity ($>50 \text{ W/m·K}$) • Void-free joints, zero-stress bond line | Wide Bandgap (WBG) semiconductors, SiC, GaN, Automotive IGBTs |

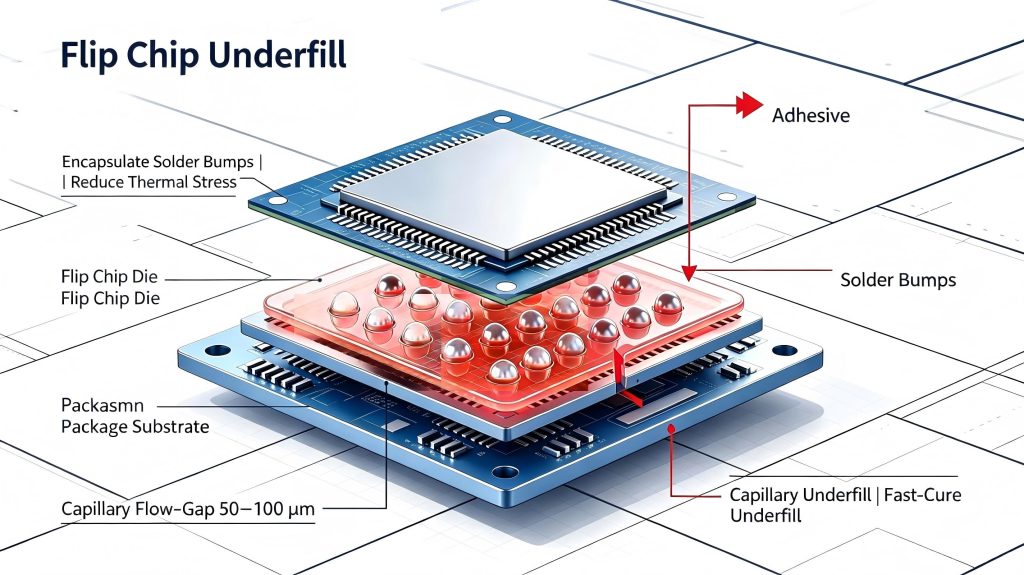

2. Flip Chip Underfills (Underfill Encapsulants)
Semiconductor packaging adhesive underfills are specifically engineered for Flip Chip, BGA, CSP, and WLCSP packages and fill the gap between the chip and the substrate to redistribute thermal stress away from fragile solder joints (bumps).
Capillary Underfill (CUF)
- Chemistry: Ultra-low viscosity modified epoxy resin.
- Mechanism: Viscosity $< 500\text{ cP}$; flows via capillary action into tight $50$–$100\,\mu\text{m}$ gaps.
- Key Parameters: High glass transition temperature ($T_g = 120^\circ\text{C}$ – $160^\circ\text{C}$), CTE matched to substrate ($\Delta \text{CTE} < 10\text{ ppm/}^\circ\text{C}$).
- Applications: Mobile processors, Automotive BGAs, Consumer electronics.
Fast-Curing Underfill
- Properties: Formulated for snap-curing at moderate temperatures to maximize throughput.
- Applications: High-volume consumer IC packaging.
UV-Fix + Thermal Cure Underfill
- Properties: Dual-cure mechanism. Immediate edge-fixing via UV light, followed by deep-section thermal curing.
- Applications: Ultra-thin chips, multi-die stacks, and high-precision micro-optoelectronics.

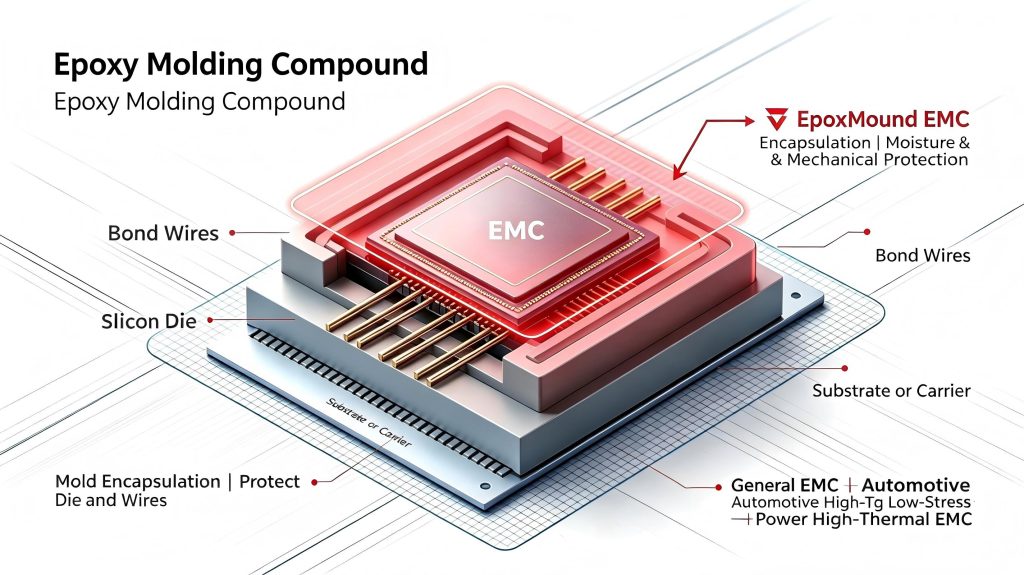

3. Epoxy Molding Compounds (EMC)
In the semiconductor packaging adhesive system, EMC is the bulk encapsulation material used to overmold the silicon die, wire bonds, and leadframe/substrate. It provides structural rigidity and physical environmental protection.
General-Purpose EMC
- Composition: Epoxy resin + hardener + fused silica fillers + flame retardants.
- Functions: Mechanical protection, moisture resistance, and dustproofing.
- Applications: Standard consumer ICs, SOP, QFP, and discrete packages.
High-$T_g$ Low-Stress EMC
- Properties: High glass transition temperature ($T_g = 160^\circ\text{C}$ – $260^\circ\text{C}$), exceptionally low CTE, and minimal chemical shrinkage to protect thin wire bonds.
- Applications: Automotive Grade 1/0 chips, Industrial controllers, and high-temperature ICs.
Highly Thermal Conductive EMC
- Properties: Filled with thermal ceramics (e.g., Alumina or Boron Nitride), UL94 V-0 flame rating.
- Applications: Power modules, IPMs, MOSFETs, and automotive power electronics.
Ultra-Thin & Fine-Pitch EMC
- Properties: Ultra-low viscosity and high flowability to prevent mold voids in ultra-narrow channels.
- Applications: Fan-Out Panel Level Packaging (FOPLP), WLCSP, and System-in-Package (SiP).

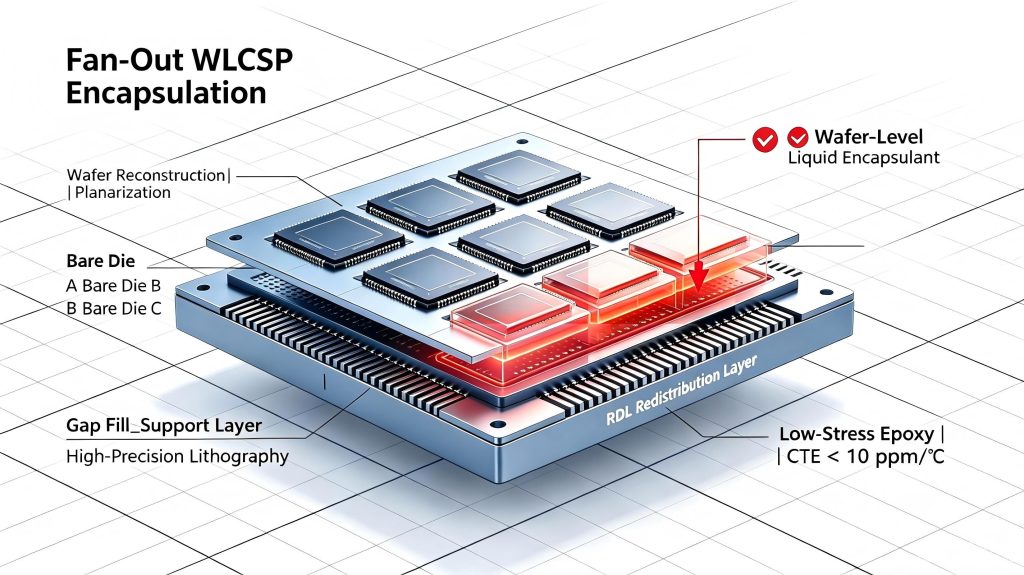

4. Wafer-Level & Fan-Out Encapsulants
Liquid semiconductor packaging adhesive encapsulants are engineered specifically for Fan-Out (FOWLP) and Advanced Packaging. These liquid encapsulants are used for wafer reconstruction, die embedding, and gap-filling.
- Core Systems: Ultra-low stress liquid epoxies, modified silicones.
- Performance Metrics: Extremely low CTE ($\text{CTE} < 10\text{ ppm/}^\circ\text{C}$), near-zero warpage to ensure subsequent photolithography and redistribution layer (RDL) accuracy.

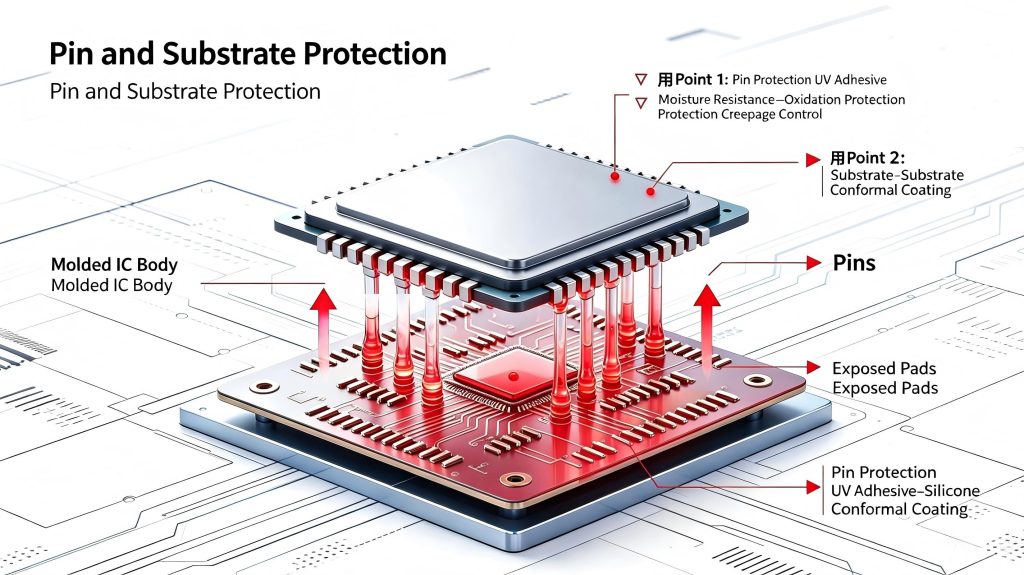

5. Pin, Lead & Substrate Encapsulation
A semiconductor packaging adhesive can be used for localized environmental reinforcement on open leads or substrate traces.
Pin Protection UV Adhesives
- Features: Rapid UV cure (within seconds), solvent-free, high dielectric strength.
- Locations: Exposed lead roots, wire-bond terminals.
- Function: Prevents lead oxidation, dendritic growth, and mechanical bending.
Substrate Moisture Barrier Coatings
- Features: Ultra-thin hydrophobic epoxies or silicone-modified conformal coatings.
- Locations: Exposed copper traces on substrates.
- Function: Exceptional moisture, salt-spray, and oxidation resistance.

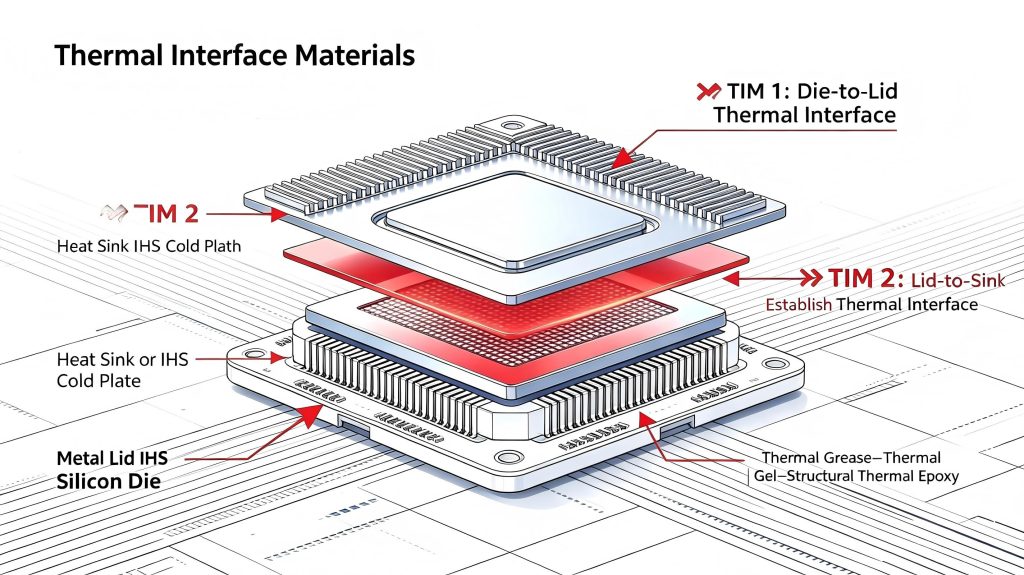

6. Thermal Interface Materials (TIM)
Thermal interface materials in the semiconductor packaging adhesive system are applied post-packaging to bridge the micro-gaps between the silicon die/package case and the heat sink.
+---------------------------------------+
| Heat Sink |
+---------------------------------------+
| Thermal Interface Material (TIM) | <-- Resolves micro-gaps & thermal bottlenecks
+---------------------------------------+
| Die / Package Case |
+---------------------------------------+
- Thermal Grease (Non-Curing): High thermal conductivity, low oil separation, excellent wet-out performance. Used for CPU/GPU lid interfaces.
- Thermal Gel (Dispensable & Compressible): Semi-curing, low stress, highly conformable. Best for multi-chip modules with varying component heights.
- Structural Thermal Epoxies: Combines high thermal conductivity with structural adhesive properties to mount heat-spreaders permanently.

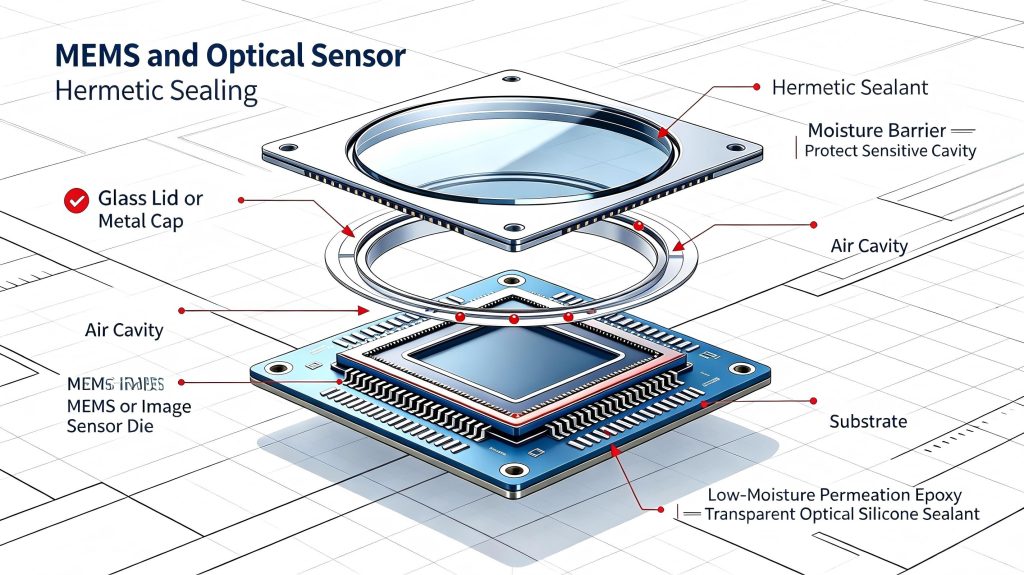

7. MEMS & Optoelectronic Hermetic Sealants
Semiconductor packaging adhesive selection for MEMS and optical devices addresses sensitivity to outgassing, stress, and moisture. They require ultra-pure, specialized sealants.
- Low-Moisture-Vapor-Transmission (MVTR) Epoxies: Extremely low moisture permeability. Used for sealing pressure sensors, gyroscopes, and MEMS cavities.
- Optical Grade Clear Silicones: High optical clarity ($>99\%$ transmission), non-yellowing, low modulus (stress-free). Used for CMOS image sensors, LiDAR, and laser diodes.

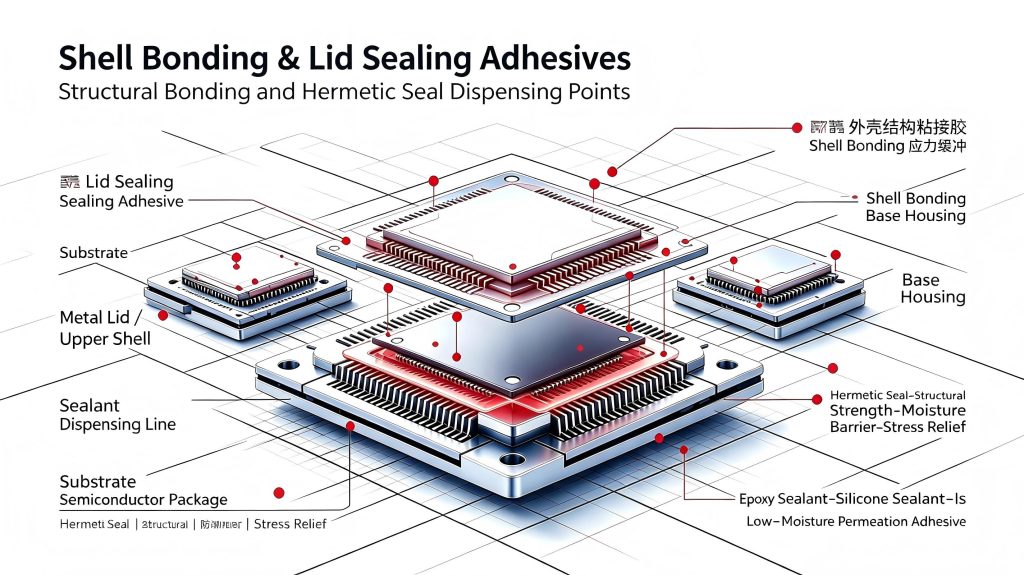

8. Shell Bonding & Lid Sealing Adhesives
Shell-bonding semiconductor packaging adhesive is used for the final mechanical assembly and sealing of semiconductor housings.
- Modified Silane (MS) Polymers: Low VOC, non-corrosive to copper/tin, flexible to absorb thermal shock. Used for sealing ceramic and metal packages.
- High-Temperature RTV Silicones: Continuous service temperatures $>200^\circ\text{C}$, high insulation, and weatherproofing. Used for industrial and automotive housing seals.
Summary: Semiconductor Adhesive Selection Quick-Reference
[Die Attach] ---------> Conductive Silver Paste (Power) / Non-Conductive Epoxy (Signal)
|
[Flip Chip] -----------> Capillary Underfill (Thermal Stress & Solder Joint Protection)
|
[Encapsulation] -------> Epoxy Molding Compound (EMC) (Standard vs. High-Tg for Automotive)
|
[MEMS/Optics] ---------> Low-Outgassing & Optical Clear Sealants
|
[Thermal Management] --> Thermal Gels & Epoxies (TIM 1 & TIM 2)Assign each semiconductor packaging adhesive to a specific package interface
A semiconductor packaging adhesive solution needs a location-specific brief before a chemistry can be evaluated. Die attachment, underfill, lid sealing and contact with a cooling surface serve different functions within the same semiconductor package. Identify the bonded surfaces, the electrical duty and the route available for heat transfer. Why treat every resin around a chip as interchangeable when each interface has a different load and access condition? Include the assembly sequence in the brief, especially where later heating, cleaning or handling can expose a cured joint to new conditions. Material intended to protect an interconnection must be evaluated for the movement it transfers into that feature, while a mounting bond needs its own retention assessment. It’s also necessary to reserve optical openings, electrical contacts and other keep-out regions. The potting and encapsulating material category organizes general protective materials, but a category listing alone does not establish suitability for a particular semiconductor package or packaging process.
Inspect concealed coverage and verify package function
When trialing a semiconductor packaging adhesive solution, inspect the interface that becomes hidden after assembly rather than relying on the visible fillet alone. Material can appear continuous around an edge while leaving a void beneath a component. Use an inspection method appropriate to the package and compare the observed coverage with the intended dispense pattern. Follow the selected formulation’s cure instructions and check cure access in the real geometry; an exposed sample may not represent material behind an opaque part. Evaluate alignment, electrical function and thermal behavior after processing, then repeat relevant checks following the intended environmental exposure. Keep the package design and operating conditions consistent between comparisons. Any delamination or movement should be traced to its location so that interface failure is distinguished from damage within a substrate or cured material. Where heat transfer is part of the requirement, the thermally conductive adhesive material category supports a separate interface discussion without implying that a bulk thermal property proves complete package performance.
