1.Vibration Resistance & Threadlocking: Continuous high-amplitude vibration loosens mechanical fasteners and compromises flanged joints. Chemical locking and gasketing compounds are mandatory to maintain clamp load and provide zero-leakage fluid sealing.
2.Aggressive Fluid Immunity: Adhesives must maintain structural integrity, tensile strength, and volumetric stability when submerged in or splashed with hydraulic fluid, diesel fuel, engine oil, transmission oil, synthetic lubricants, and glycol-based coolants.
3.Environmental Weathering & UV Stability: Exterior seams and cab structures demand long-term resistance to direct solar radiation, ozone degradation, rain, salt spray, and extreme diurnal temperature swings without cracking, chalking, or yellowing.
4.High Impact Resistance & Fatigue Strength: Boom assemblies, chassis frames, and cab enclosures undergo violent shock loads during digging, lifting, and crushing. Adhesives must offer high shear, tensile, and peel strength paired with high elongation to absorb strain without brittle cleavage.
5.Dual-Zone Thermal Management: Solutions must differentiate between Zone A (High-Temperature/Oil-Submerged Engine & Powertrain Compartments) and Zone B (Exterior Weatherproof & Structural Cab Modules).
Component-by-Component Adhesive Matrix & Engineering Logic
[Heavy Machinery Sub-Assemblies & Adhesive Map]
│
┌──────────────────┬─────────────┼──────────────┬
▼ ▼ ▼ ▼ ▼
[Hydraulic System] [Powertrain] [Cab & Body] [Electronics] [Bearings & Shafts]
Threadlockers FKM / FVMQ PU Structural Silicone/PU Anaerobic
Flange Sealants RTV Silicones MS Polymers Potting Retaining Compounds

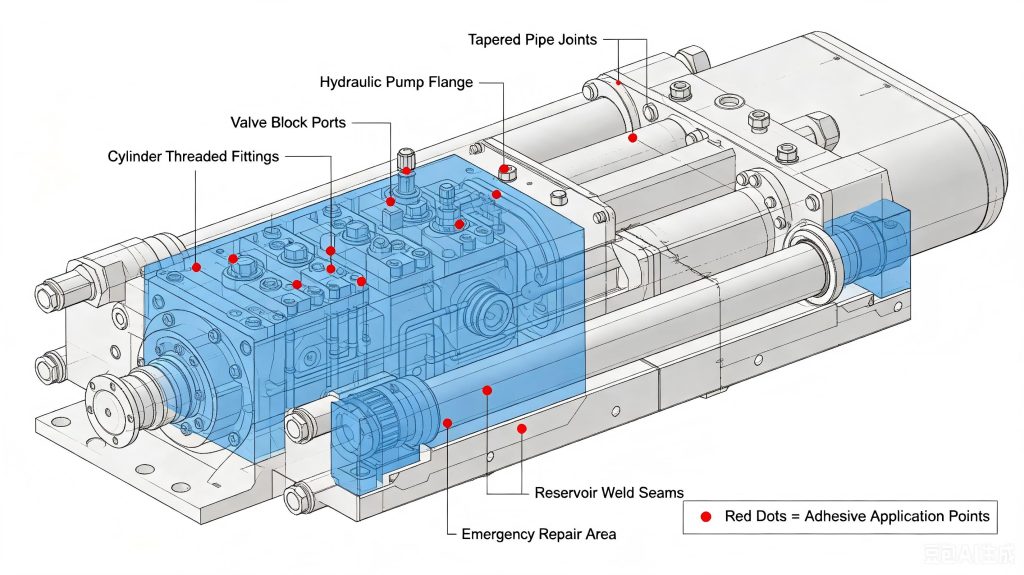

1. Hydraulic Systems & Fluid Power
Threaded Fittings, Valve Blocks & Hydraulic Ports
Removable Joints: Blue Medium-Strength Anaerobic Threadlocker. Prevents vibration loosening while permitting disassembly with hand tools. Resists pressures up to 35 MPa.
Permanent / High-Pressure Lines: Red High-Strength Anaerobic Threadlocker. Designed for high-vibration threaded connections, diesel lines, and structural studs (-55°C to +180°C).
Tapered Pipe Joints: PTFE-Filled Anaerobic Thread Sealant. Replaces PTFE tape on NPT, BSP, and metric fittings to prevent galling and fluid weeping under pressure spikes.
Hydraulic Pumps, Transmissions & Flanges
Ambient Flanges: Neutral Cure RTV Silicone or Polyurethane (PU) Gasket Sealant. Replaces pre-cut paper and cork gaskets.
High-Temperature / High-Pressure Flanges: FKM (Fluoroelastomer) Liquid Gasket. Engineered for gearboxes and hydraulic pumps exposed to continuous 200°C temperatures and synthetic oils with zero volume swell.
High-Vibration / Large-Gap Flanges: Two-Component Flexible PU Sealant. High elongation (300%+) compensates for thermal expansion and dynamic flexure.
Hydraulic Reservoir Seams & Emergency Repairs
Weld Seams: Fuel/Oil-Resistant PU or FVMQ (Fluorosilicone) Sealants. Elastomeric matrix absorbs pressure pulses without cracking.
Emergency Tank Repairs: Two-Part Methyl Methacrylate (MMA). Offers high impact resistance and strong adhesion to oily steel or aluminum.

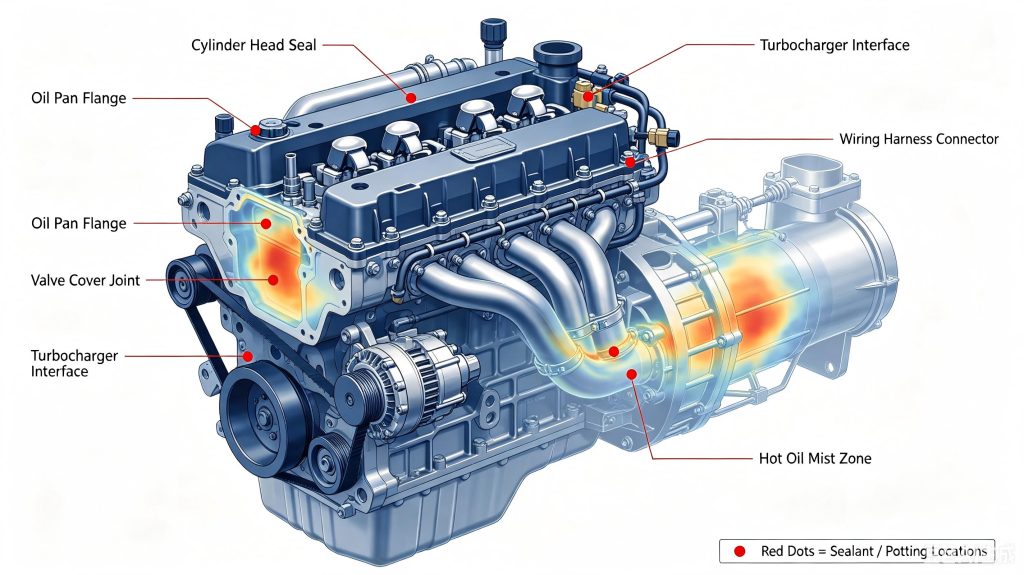

2. Engine Assembly & Powertrain Compartments
Cylinder Heads, Oil Pans & Valve Covers: FKM Elastomeric Gasket Sealant or Oil-Resistant RTV Silicone. Flexible cure prevents oil weeping and cleans off easily during overhauls.
Turbochargers & Exhaust Interfaces: FKM High-Temp Sealant (Peak tolerance: 250°C). Prevents swelling and degradation from high-temperature oil mist where standard RTV silicones fail.
Wiring Harness Connectors: FVMQ Gel Potting. Protects connectors from fuel spray, hot motor oil, and thermal degradation with IP67/IP68 protection.

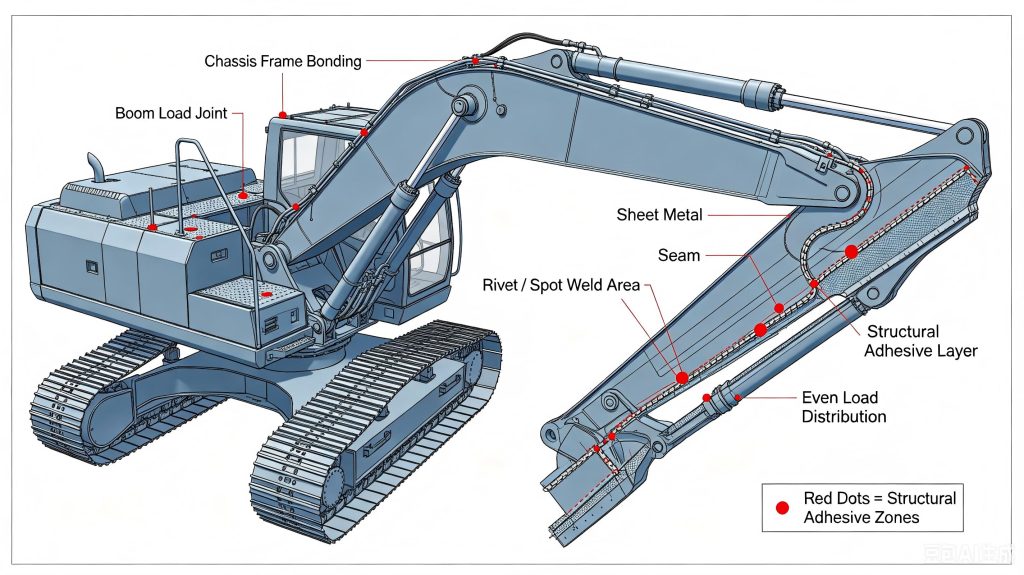

3. Body Chassis, Boom Structures & Heavy Sheet Metal
Replacing spot welds and rivets with structural adhesives eliminates stress concentrations, prevents galvanic corrosion, and provides superior shock absorption.
[Stress Distribution Under Dynamic Shock Loads]
Traditional Riveted / Spot-Welded Joint: [High Risk of Fatigue Cracking]
Bonded Structural Adhesive Joint: [Even Load Distribution & Flex]
Primary Load-Bearing Joints (Booms, Frames, Chassis)
Two-Part Polyurethane (PU) Structural Adhesive: Primary choice for high toughness, fatigue resistance, and cold ductility down to -40°C. Absorbs dynamic shock during digging or crushing.
Methyl Methacrylate (MMA): Rapid fixture times; bonds directly to lightly oiled steel and aluminum without surface primers while preventing galvanic corrosion.
Silyl Modified Polymer (SMP/MS): Over-paintable, non-staining hybrid sealant ideal for lightweight panels and cab enclosures.
Exterior Sheet Metal Seams & Chassis Protection
SMP / MS Polymer Joint Sealant: Non-yellowing, UV-stable, and paintable immediately after skinning.
High-Hardness PU Underbody Coating: Applied to chassis undercarriages and wheel wells to resist stone chipping, mud abrasion, and road salt corrosion.

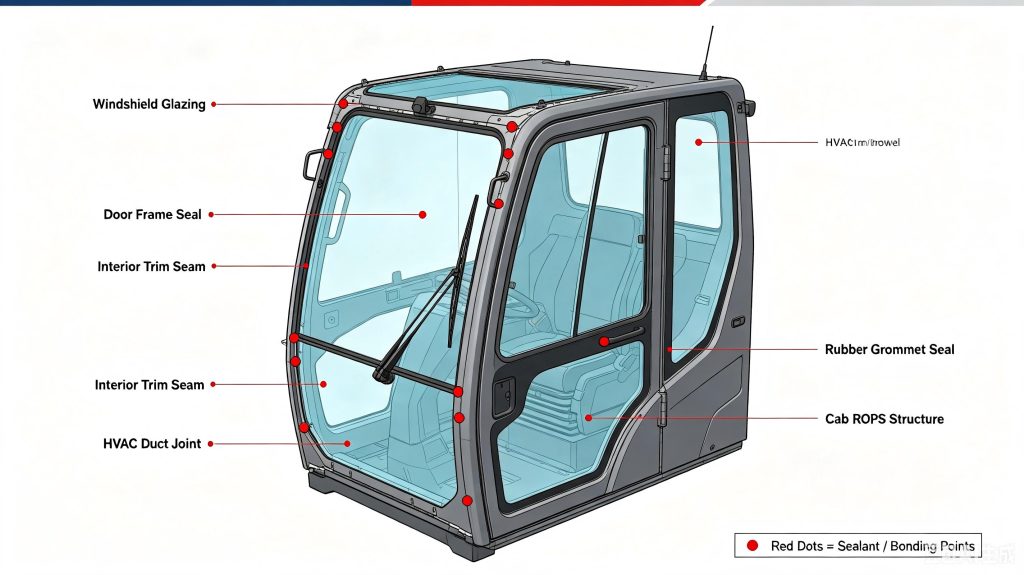

4. Operator Cab, Windows & Doors
Windshield & Quarter-Glass Direct Glazing: High-Modulus PU Direct Glazing Adhesive. Structural adhesive that enhances Cab Rollover Protection Structure (ROPS) strength and ensures immediate drive-away integrity.
Door / Window Frames & Interior Seams: MS Polymer Sealant. Isocyanate-free, low-VOC, odorless, non-fogging, and non-staining.
HVAC Ducting & Interior Grommets: Flexible Neutral Cure Silicone Sealant. Dampens vibration for air ducts, rubber grommets, and interior trim panels.

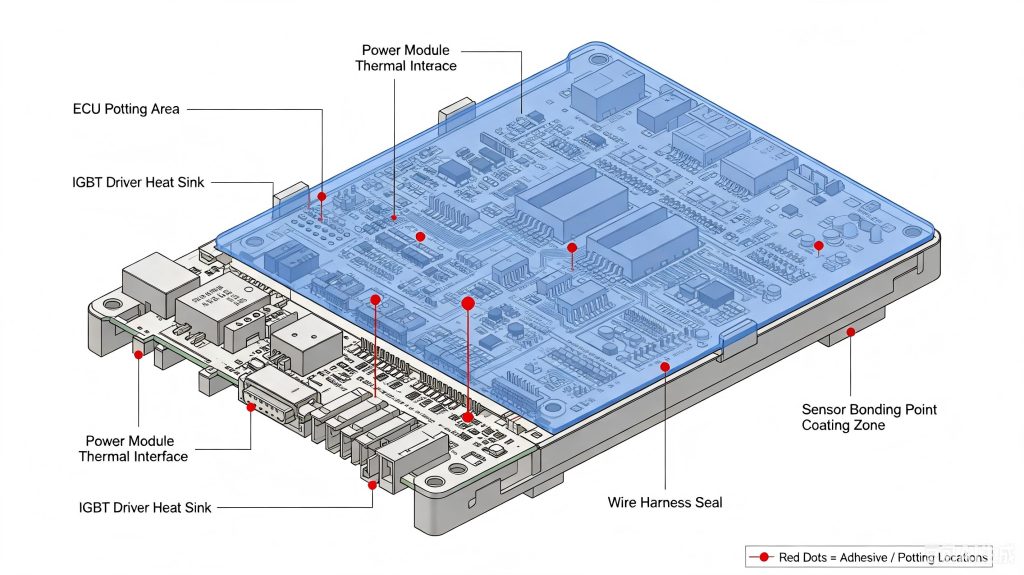

5. Onboard Electronics, Controllers & Sensors
Engine & Chassis ECUs: Two-Part Addition-Cure Silicone Potting Encapsulant. Broad temperature stability (-60°C to +200°C) with low thermal stress on micro-components and easy reworkability.
Undercarriage & Track Controllers: Polyether-based Polyurethane Potting Compound. Provides high hydrolysis resistance, mechanical strength, and sand/slurry impact resistance.
Position / Speed / Pressure Sensors: UV-Cure Acrylic Adhesive. Offers instant light curing for high-speed automated sensor production.
Thermal Management (Power Modules / IGBT Drivers): Thermally Conductive Silicone Potting/Paste ($k > 1.5\text{ — }3.0\text{ W/m}\cdot\text{K}$). Dissipates internal heat to metal heat sinks while maintaining dielectric isolation.

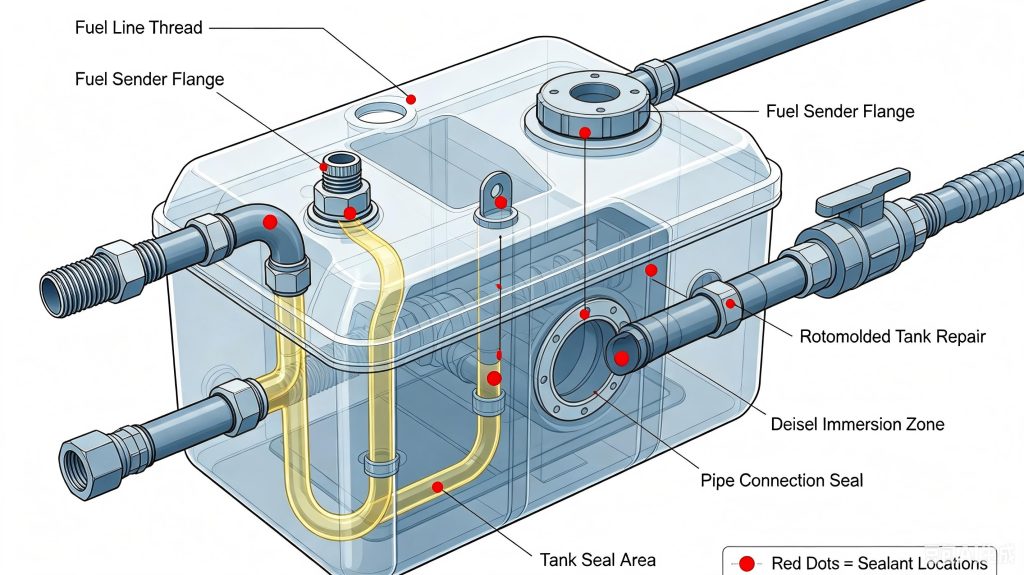

6. Fuel Lines & Diesel Tanks
Fuel Thread Connections: Red High-Strength Fuel-Resistant Anaerobic Sealant. Impervious to continuous immersion in ultra-low sulfur diesel (ULSD) and biodiesel blends.
Fuel Sender Flanges & Tank Seals: FKM / FVMQ Fluorosilicone Gasket Compound. Prevents gasket swelling and blowout from exposure to diesel fuel.
Rotomolded Fuel Tank Repairs: Fluorine-Modified PU / MMA Adhesive. Specifically modified to adhere to low surface energy plastics (HDPE/PP).

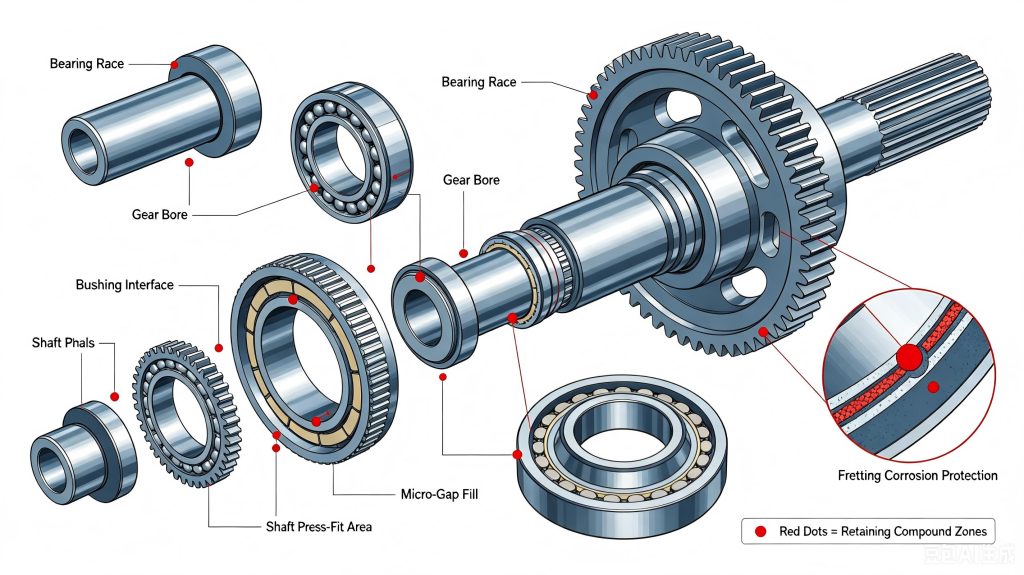

7. Cylindrical Assemblies (Shafts, Bearings & Bushings)
Bearing Races, Gear Bores & Bushings: High-Strength Anaerobic Retaining Compound. Fills micro-voids in press-fitted or slip-fitted metal assemblies. Prevents fretting corrosion, stops ring slipping on heavy drive shafts, and uniformly redistributes high radial loads.
| Feature / Specialty Polymer | FVMQ (Fluorosilicone) | FKM (Fluoroelastomer) | STPU / MS Polymer (Silane-Terminated) | PTFE-Filled Anaerobic | |||
| Primary Chemical Matrix | Fluorinated Silicone | Fluorocarbon Rubber | Silane-Modified Polyether/PU | Acrylic / Anaerobic Matrix + PTFE | |||
| Key Advantage | High chemical resistance + extreme low-temp elasticity (-60°C to 200°C) | Ultimate fuel/chemical/heat resistance (Up to 220°C continuous) | Isocyanate-free, non-bubbling, paintable, excellent UV weathering | Lubricated assembly, eliminates thread galling & seizure | |||
| Target Application | Harness connectors, fuel sensors, turbo seals | High-temp engine flanges, oil sumps, turbochargers | Cab exterior seams, body panels, exterior enclosures | Stainless steel hydraulic fittings, outdoor structural bolts | |||
| Limitation | Moderate tensile strength; not for high structural loads | Reduced low-temp flexibility (hardens below -20°C); higher cost | Not suitable for continuous high-temperature immersion (>100°C) | Anaerobic cure only; requires active metal or primer on passive surfaces | |||
| Adhesive Chemistry | Primary Engineering Advantage | Specific Heavy Machinery Application | Application Exclusions / Restrictions | ||||
| Anaerobic Threadlockers & Retaining Compounds | Anaerobic metal cure, excellent dynamic shear strength, fluid immunity | Hydraulic port fittings, structural bolts, bearing sleeves, gear shafts | DO NOT USE on plastics or non-metallic substrates; ineffective on large gaps (>0.5 mm). | ||||
| Polyurethane (PU) Structural Adhesives | Highest peel/shear strength, high impact absorption, low-temperature ductility | Boom steel joints, frame stiffeners, cab ROPS windshield direct glazing | Avoid continuous service temperatures exceeding 120°C. | ||||
| MS Polymer (SMP) Hybrid Sealants | Outstanding UV stability, paintable, non-corrosive, non-staining | Exterior cab panel seams, roof joints, window seals, exterior lighting | Not recommended for continuous immersion in diesel or hydraulic oil tanks. | ||||
| Neutral Cure RTV Silicone (Industrial Grade) | Excellent broad thermal range (-50°C to +180°C), electrical insulation | General engine covers, wiring harness grommets, cab HVAC duct seals | Avoid exposure to continuous fuel/gasoline submersion; subject to volumetric swelling. | ||||
| Fluorosilicone (FVMQ) Sealants | Excellent broad thermal range paired with fuel/oil resistance | Engine oil sensors, turbocharger air-intake lines, fuel sender seals | High raw material cost; not suited for primary structural load-bearing frame bonds. | ||||
| Fluoroelastomer (FKM) Sealants | Highest resistance to hot synthetic oils, diesel fuel, and temperatures to 220°C | Transmission sumps, turbocharger flanges, heavy-duty engine valve covers | Reduced elasticity at extreme sub-zero temperatures (-20°C and below). | ||||
| Two-Part Structural Epoxies / MMA | Rapid strength buildup, excellent shear strength, bonds oily metal | Quick-assembly chassis brackets, emergency hydraulic tank repair | Brittle under severe continuous shock impact if un-toughened; short working life. | ||||
