1. Public Transportation: Overview
Public transportation includes buses, coaches, metro trains, light rail, trams and passenger ferries. Adhesives replace traditional mechanical fasteners (rivets, screws) to reduce weight, eliminate stress concentration, damp vibration and noise, and seal against water, dust and corrosion. Key requirements: fire & smoke compliance, vibration fatigue resistance, wide temperature tolerance, weathering resistance, low VOC, adhesion to multi-substrates (aluminum alloy, FRP, PP/ABS, PVC, glass, honeycomb panels).
2. Typical Bonding & Sealing Applications
2.1 Exterior Components

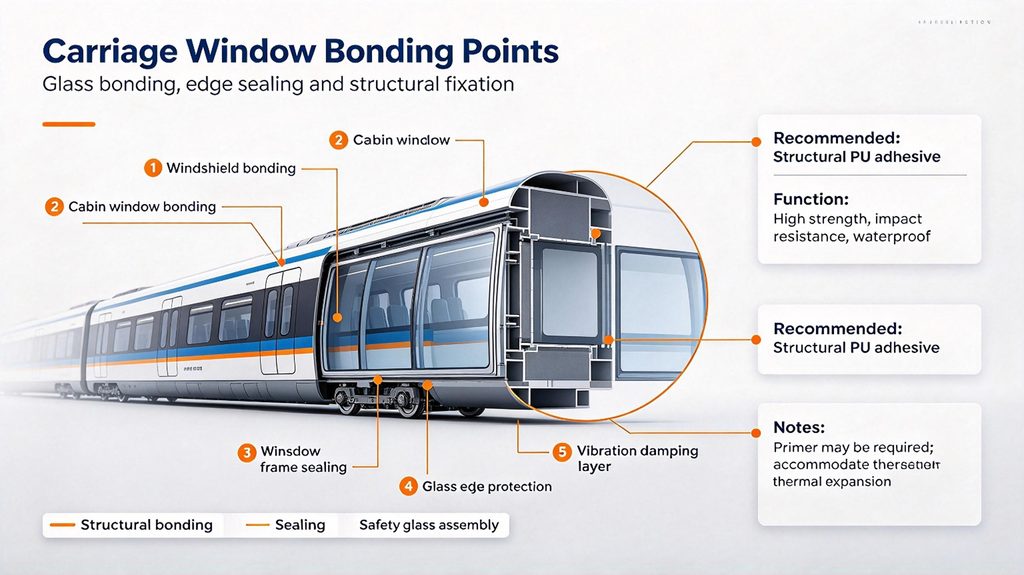

- Window glass bonding: passenger cabin windows, driver cab windshields

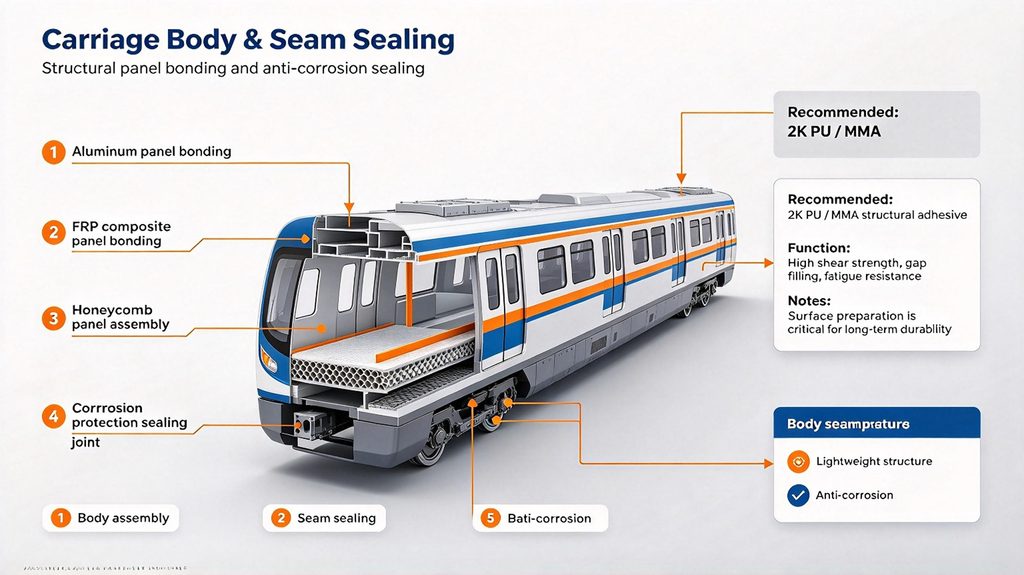

- Body panel assembly: aluminum / FRP composite panels, honeycomb sandwich panels
- Exterior trim & decorative parts: skirt panels, marker light housings, exterior logos
- Seam sealing: body joint sealing, anti-corrosion sealing, waterproofing
- Roof assembly: roof panels, air conditioning unit mounting
2.2 Interior Components

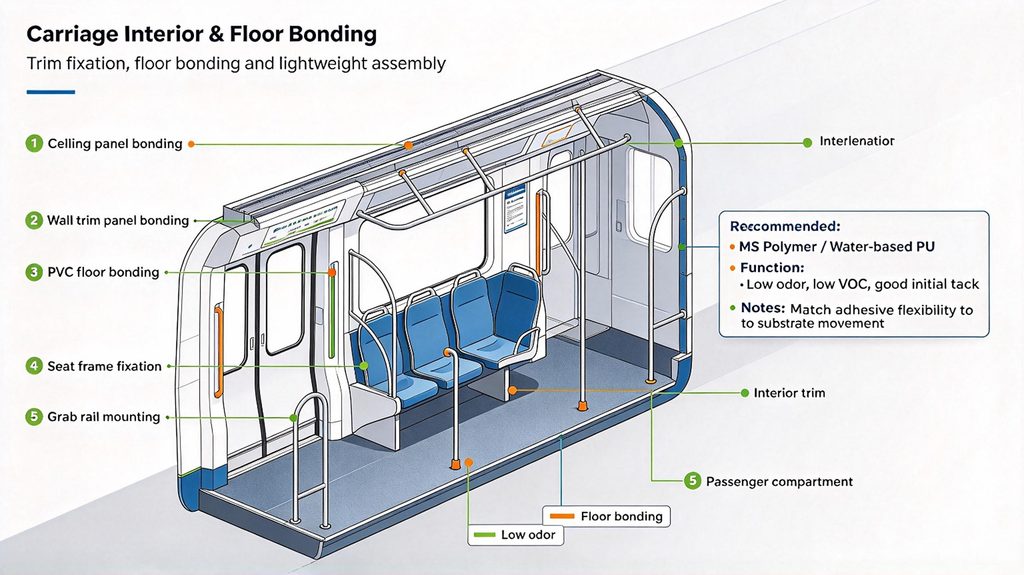

- Interior panel bonding: PP, ABS, FRP interior wall & ceiling panels
- Flooring installation: PVC rubber floor covering bonding
- Seat assembly: seat back, seat base, foam & frame bonding
- Handrails, grab bars, luggage rack fixing
- Cable routing, potting & sealing of electrical connectors
- HVAC duct bonding and sealing
2.3 Structural & Vibration / Noise Management
- Structural bonding of lightweight composite sandwich structures
- Vibration damping, acoustic decoupling between metal and plastic parts
- Gap filling for uneven assembly surfaces
3. Recommended Adhesive Types & Application Matrix
| Application Area | Substrate Combination | Adhesive Type | Core Benefits | Remarks |
|---|---|---|---|---|
| Windscreen / cabin window bonding | Glass + Aluminum/FRP | One-component PU structural adhesive | High strength, flexible, excellent shock resistance, waterproof | Must meet fire standard; primer required for some substrates |
| Composite / aluminum body structural bonding | FRP, aluminum alloy, honeycomb panel | Two-component structural PU / MMA adhesive | High tensile & shear strength, gap-filling capability, good fatigue performance | Suitable for large-area bonding; long open time |
| Interior plastic trim, ceiling panels | PP, ABS, FRP | MS Polymer modified silane adhesive | Low odor, low VOC, non-corrosive, paintable, good weathering | No isocyanate; ideal for interior finishing |
| Body seam waterproof sealing | Metal, FRP | PU sealant / MS sealant | High elongation, anti-aging, resistant to road salt and moisture | Accommodates thermal expansion and contraction |
| PVC floor bonding | PVC floor + metal/concrete substrate | Water-based PU contact adhesive | Low odor, easy spread, good initial tack | Indoor use only; avoid heavy long-term soaking |
| Lightweight interior parts, small decorative components | ABS, PC | UV curable adhesive | Fast curing, high automation efficiency | Requires light-transmitting substrate |
| Electrical component potting & sealing | Plastic, metal, PCB | Two-component epoxy / silicone | Insulation, moisture-proof, thermal stability | Epoxy rigid; silicone for high/low temp environments |
4. Key Performance & Compliance Standards
- Fire, smoke & toxicity Rolling stock must comply with EN 45545 (EU rail), GB/T 32374 (China rail), NFPA 130. Low smoke density, low toxic gas emission when burning.
- Environmental durability Temperature range: typically -40 ℃ ~ +85 ℃; resistance to UV, rain, road salt, cleaning detergents.
- Mechanical properties Resist cyclic vibration, shock during vehicle operation; no debonding under thermal cycling.
- Environmental & health Low VOC, low odor for passenger cabin; REACH compliant.
5. Common Challenges & Notes
- Low surface energy substrates such as PP need plasma treatment or dedicated primer for reliable bonding.
- Fire rating is non-negotiable for rail and bus interior materials. Ordinary construction adhesives cannot be used.
- Structural adhesives require strict surface preparation: degreasing, abrasion, primer application to ensure long-term service life.
- Differential thermal expansion between dissimilar materials (aluminum vs FRP) must be absorbed by flexible structural adhesives. Rigid epoxy may crack under repeated thermal cycling.
- Open time of two-component adhesives must match assembly takt time of production line.
6. Summary
- Structural exterior bonding: 2K PU / MMA structural adhesive
- Window glazing: 1K PU automotive/rail structural adhesive
- Interior trim & sealing: MS Polymer adhesive / sealant (low odor, preferred for passenger compartment)
- Waterproof seams: PU or MS sealant
- Electrical encapsulation: Epoxy or silicone
Public transportation material can be presented as: Option A: concise brochure version for your website; Option B: annotated schematic (all English labels) showing public transport bonding positions; Option C: short PPT script version?
Design joints for movement, substrate condition and maintenance
In public transportation, a bonded panel must be assessed as part of a moving vehicle rather than as an isolated material sample. Body flex, vibration and temperature changes can load the interfaces between glass, metal, composites and interior plastics. Identify the joint’s function before comparing formulations: carrying structural load, retaining trim and sealing a seam require different evidence. Look at the direction of loading and the places where an edge can open. A broad overlap may distribute load differently from a narrow attachment at a panel corner. Mechanical fasteners, locating features and adhesive can share duties, but their interaction should be included in the joint evaluation. The structural adhesive material range is relevant to load-carrying joints, with the substrate pair and geometry clearly specified. A flexible sealant should not be assigned a structural duty merely because it adheres well in a hand trial. The surface being bonded also needs identification. A painted panel, a coated composite and an untreated plastic present different interfaces even when their base materials remain unchanged. Evaluate the actual finish and the surface preparation that can be maintained on the production line. Cleaners used later in service may affect an exposed edge or neighboring coating, so include them in the material compatibility discussion. Why select a bond without considering how a damaged window or interior panel will be replaced? It’s sensible to define access, removal and repair requirements alongside initial assembly. A permanent attachment may be appropriate in one location while a serviceable joint is needed elsewhere. Consider whether removal will damage a protective coating or require a revised surface preparation before rebonding. Interior joints also need evaluation for appearance and the intended passenger environment; material family names alone do not establish those properties. Keep fire and smoke evidence, where required by the vehicle programme, distinct from the mechanical bond trial. The result should connect the selected formulation to a specific joint, production method and maintenance plan.
Validate assembled seams and retain a reproducible repair process
When validating public transportation joints, inspect how the adhesive reaches the intended surfaces before the parts become inaccessible. Starts and stops in a long bead, transitions around a bracket and changes in flange shape can create local discontinuities. Visible squeeze-out does not prove continuous contact inside the full joint. Use representative sections or another appropriate inspection method to check coverage and the position of the adhesive layer. For sealed exterior seams, follow the complete water path through the assembly. Adjacent fasteners, end caps and junctions between panels may bypass a sound straight bead. The industrial adhesive sealant category supports discussions of joint movement and sealing, while the assembled geometry determines where leakage must be evaluated. Consider drainage features separately from barriers; an intended opening should not be filled simply because it is near a seam. Mechanical checks should reflect the service load and the joint shape. A simple overlap specimen can support material comparison, but it cannot reproduce every opening or bending load in a vehicle panel. After relevant vibration, temperature or moisture conditioning, inspect both the attachment and the surrounding substrate. Distinguish separation at the adhesive interface from cracking in a coating or damage within a composite. A detached coating calls for a different investigation from an uncured adhesive region. For glazed or visible interior parts, compare alignment and appearance as well as bond integrity. A joint may retain the part while allowing movement that creates noise or interferes with fit. Record those outcomes separately so that a cosmetic issue is not misreported as a structural result. Trial the planned repair process on representative parts, including removal, cleaning and bonding to the resulting surface. Previously bonded material or damaged finishes can change the interface available to the replacement joint. Keep the permitted preparation and material identity in the repair documentation, and revisit compatibility when a coating or cleaner changes. This makes production and maintenance evaluations comparable without assuming that a successful fresh bond automatically proves an equivalent repaired joint.
