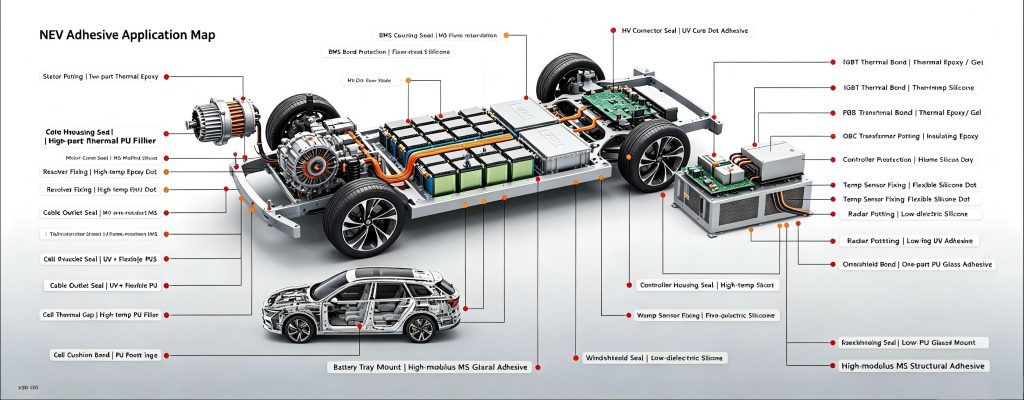

NEV Adhesive Application Plan Across the Vehicle

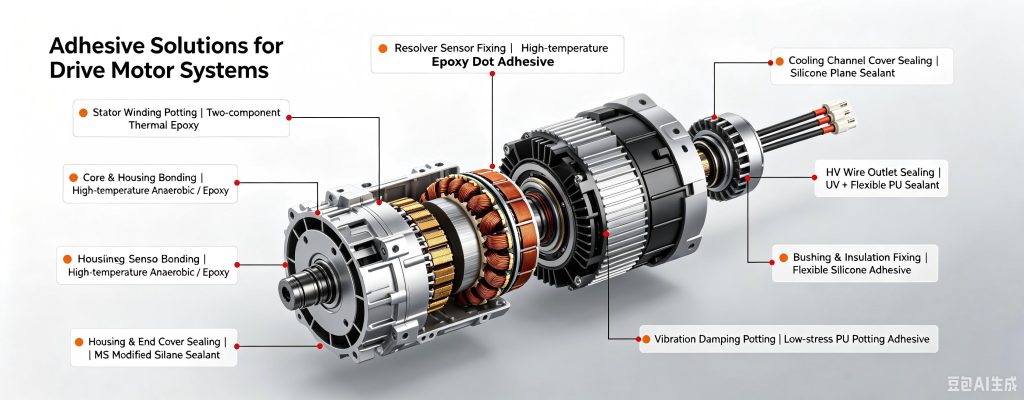

I. Adhesive Solutions for Drive Motor Systems

NEV adhesive application requirements for drive motors: High temperature resistance, thermal conductivity, insulation, vibration resistance, waterproof/moisture-proof, oil resistance, and refrigerant resistance.

Specific Application AreaRecommended Adhesive TypeKey Function & Process Requirements
Stator Winding EncapsulationThermally conductive epoxy potting adhesive-JOME3113 Stator coil gap and iron core insulation potting. Delivers insulation voltage resistance, heat dissipation, and vibration buffering; insulates copper wires from moisture and oil; suppresses operating noise.
Stator Core to Housing BondingHigh-temperature epoxy structural adhesive-JOME3211-146Interference-fit bonding between the core outer wall and motor housing. Provides high-strength locking, eliminates clearance, transmits torque, and withstands $120\sim180^\circ\text{C}$ long-term without delamination.
Motor End Cap & Housing SealingSilicone flat sealant -JOMS5339/ MS (Modified Silane) polymer sealant-JOMS3360Sealing of front/rear end cap joints and cooling water channel cover gaps. Prevents coolant leakage, blocks road mud/water, and offers elastic adaptability to thermal expansion and contraction.
Resolver / Temp Sensor FixationSingle-component high-temperature epoxy-JOME327/ Silicone fixing adhesive-JOMS5316Bonding sensor coils to the stator frame. Ensures insulation and vibration resistance; prevents loosening without interfering with signal transmission.
Motor Harness Joint & Lead Wire SealingUV-curable adhesive-GM3231 + Silicone sealant composite-JOMS5316 / Flexible PU potting adhesive-JOMP2608Waterproof encapsulation at outlet holes and terminal roots. Prevents water vapor from migrating along wire strands to avoid short circuits.

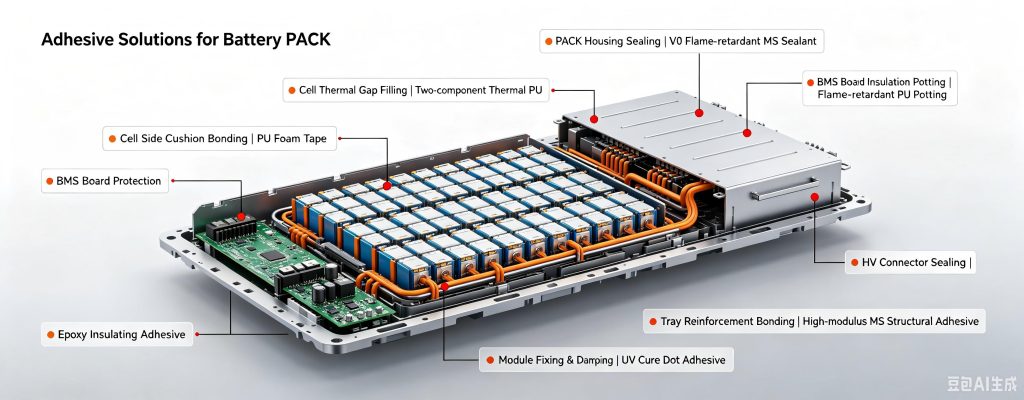

II. Adhesive Solutions for Battery PACK Systems

Battery PACK requirements in an NEV adhesive application: Thermal conductivity, flame retardancy (V-0 grade), shock/vibration buffering, insulation, low-temperature resistance, and lightweight structural bonding.

Specific Application AreaRecommended Adhesive TypeKey Function & Process Requirements
Cell to Liquid Cooling Plate BondingTwo-component thermally conductive polyurethane structural adhesive-JOMP2103 / Thermally conductive silicone pad-JOMG 25-80Bottom of cell and liquid cooling plate gap filling. Rapidly dissipates heat during charge/discharge, balances temperature differences, and mitigates thermal runaway risks.
Cell Structural Bonding & BufferingHigh-rebound polyurethane foaming tape / Low-stress silicone structural adhesive-JOMS 3360Bonding cell side walls to plastic brackets. Absorbs driving shocks, cushions cell expansion/contraction, and prevents friction wear or short circuits.
Module Metal Bracket & End PlateEpoxy structural adhesive-JOME3005 / Two-component MS structural adhesive-JOMS3191Structural bonding of module side plates and support brackets to cells. High-strength load-bearing performance that meets crash-safety standards; resists thermal cycling without cracking.
PACK Enclosure SealingFlame-retardant MS sealant -JOMS 3360/ Polyurethane sealant-JOMP2103Sealing upper/lower box joints and maintenance cover grooves. Meets IP67/IP68 water/dust-proof standards; provides V-0 flame retardancy and road salt resistance.
BMS Board EncapsulationFlame-retardant electronic PU potting adhesive-JOMP2103 / Low-stress silicone potting adhesive–JOMS 5230Protective encapsulation of the PCB, sampling harness, and low-voltage components. Moisture-proof and vibration-resistant; isolates circuit boards from electrolyte vapor corrosion.
High-Voltage Harness & ConnectorUV-curable sealant -JM3302/ Thermally conductive silicone sealant-JOMS 5317Insulation coating for copper busbars and waterproof sealing at connector tails. High-voltage insulation; prevents creepage and moisture-induced leakage.

III. Adhesive Solutions for Electronic Control Systems (VCU/MCU/OBC)

An NEV adhesive application in electronic controls requires: High thermal conductivity, precise insulation, engine bay temperature resistance, and resistance to automotive fluids (water, oil, coolant).

Two pails of thermally conductive silicone potting compound
Specific Application AreaRecommended Adhesive TypeKey Function & Process Requirements
Power Devices (IGBT/MOSFET)High thermal conductivity grease / Thermal gel-JOMG2000 / Thermal interface material (TIM)-JOMG1950Interfacial thermal bonding between power chips and aluminum heatsinks. Minimizes thermal resistance to rapidly dissipate chip heat and prevent high-temperature burnouts.
Electronic Control Housing SealingHigh-temperature silicone sealant -JOMS5133/ MS polymer sealant-JOMS3360Joint sealing of the upper and lower covers of aluminum alloy housings. Keeps out moisture and dust; resists high engine-bay temperatures, oils, and coolants.
PCB Protective CoatingLow-viscosity flame-retardant PU conformal coating-JOMP2608 / Flexible silicone coating-JOMS521Global protection of mainboards, capacitors, resistors, and chips. Provides insulation, moisture barrier, and dampens vibration to reduce solder joint fatigue.
Low-Voltage Harness & Connector FixationElectronic-grade silicone adhesive -JOMS3060/ Hot-melt adhesive (temp-resistant)-JOMS5133Securing plug terminal roots and cable routing clips. Prevents signal interruption or terminal loosening caused by severe vehicle vibrations.
OBC Resonant Inductor PottingHigh thermal conductivity epoxy -JOME2040/ Silicone potting adhesive-JOME5230-15Overall potting of inductor coils and transformers. Suppresses electromagnetic resonance noise (NVH optimization) and provides high-voltage insulation.

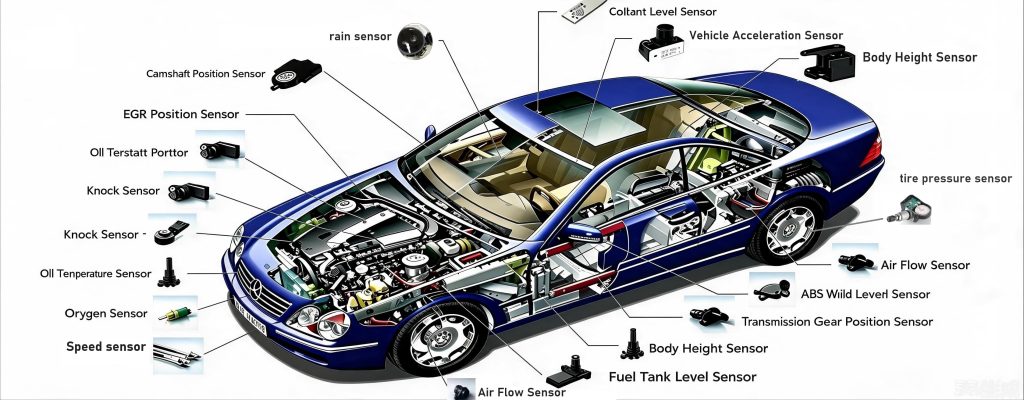

IV. Adhesive Solutions for On-Board Sensors

Sensor bonding in an NEV adhesive application calls for: Zero signal interference (low dielectric constant), high optical clarity without outgassing, and extreme outdoor weather resistance.

Black bottle of UV-curable adhesive
Specific Application AreaRecommended Adhesive TypeKey Function & Process Requirements
Battery / Motor Temp SensorsHigh-temperature silicone / Flexible PU sealant-JOMP2603Probe fixation and tail wire sealing. Maintains accurate temperature measurement; resists thermal cycling from $-40\sim180^\circ\text{C}$.
High-Voltage Current Hall SensorsLow-stress epoxy potting adhesive-JOME3102Magnetic core coil potting and shell sealing. Insulates high voltage, resists electromagnetic interference (EMI), and provides shock absorption.
Millimeter-Wave / LiDAR / Ultrasonic RadarLow-dielectric-constant silicone / MS sealant-JOMS3360Housing sealing and internal circuit potting. Zero signal attenuation or blocking; outstanding weather resistance against outdoor temp differentials.
ADAS Cameras (Surround View/Autopilot)Low-outgassing UV adhesive GM3213/ Polyurethane structural adhesive-JOMP2103Lens bracket bonding, lens-to-housing sealing, and PCB potting. Anti-yellowing, anti-fogging, and anti-outgassing to ensure image clarity.
Brake / A/C Pressure SensorsOil-resistant epoxy structural adhesive-JOME3228 / Single-component epoxy sealant-JOME3688Bonding metal shells to plastic bases and internal chip encapsulation. Resists brake fluid and refrigerant corrosion; remains leak-free under high pressure.

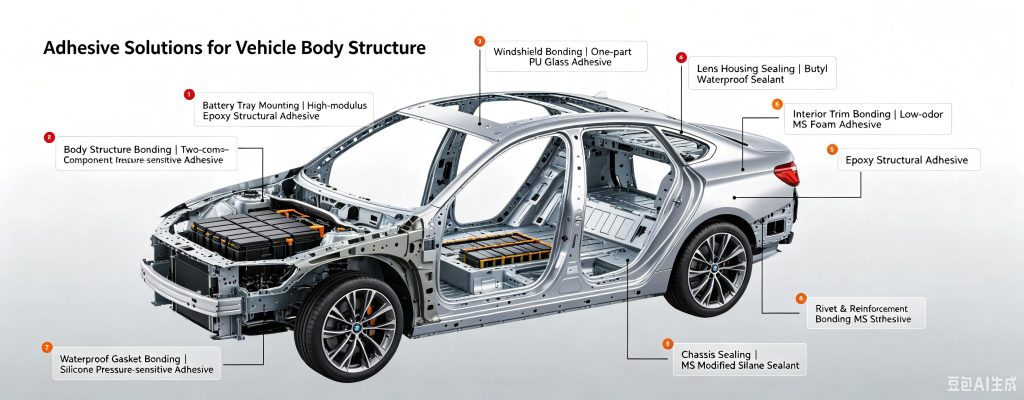

V. Adhesive Solutions for Body & Chassis Structures

Body and chassis objectives for an NEV adhesive application: Replacing/reinforcing spot welds, weight reduction, NVH (Noise, Vibration, Harshness) improvement, and anti-corrosion.

1. Body Structure Bonding & Sealing-JOM9138

Aluminum/Steel Sheet Assembly & Door Frame Bonding: Use Two-component epoxy structural adhesive / High-toughness MS structural adhesive. Replaces spot welds to reduce weight, improves body torsional stiffness, absorbs crash energy, and prevents joint corrosion.

Roof & Rear Deck Lid Edge Sealing: Use PVC weld seam sealant / Polyurethane sealant. Fills metal sheet gaps, prevents rust in hemmed edges, and dampens aerodynamic wind noise.

Battery Tray to Chassis Bonding: Use High-modulus MS structural adhesive / Epoxy crash-dampening structural adhesive. Rigidly secures the battery tray, cushions road impacts, and isolates road salt/mud.

2. Glazing & Interior/Exterior Trim Assembly-JOMP465

Windshield & Window Glazing (Front, Side, Sunroof): Use Single-component polyurethane direct-glazing adhesive. Integrates structural bonding and sealing; bears rollover safety loads and ensures lifetime waterproof performance.

Door, Hood, & Trunk Weatherstripping: Use Low-odor butyl sealant / MS polymer sealant. Fills assembly clearances, keeps out wind/dust/water, and resists aging, cracking, or hardening.

Instrument Panel, Console, & Door Trim Assembly: Use Low-odor MS adhesive / Flexible PU adhesive / Foamed double-sided tape. Guaranteed non-blooming (no whitening) and non-corrosive to plastics; dampens vibrations to eliminate cabin squeaks (BSR).

Headliner, Carpet, & Acoustic Felt Bonding: Use Eco-friendly water-based spray adhesive / Polyurethane foam tape. Engineered with ultra-low VOC and low aldehyde emissions to meet cabin air quality standards; prevents long-term sag.

Headlight & Taillight Housing Sealing: Use Thermoplastic butyl sealant / Transparent silicone sealant. Prevents water ingress and fogging; outstanding UV resistance to prevent yellowing.

3. Chassis Anti-Corrosion & Shock Absorption-JOM985

Underbody Guards & Wheel Arch Liner Fixation: Use Impact-resistant polyurethane sealant / Heavy-duty double-sided foam tape. Shields against high-speed gravel abrasion; insulates the chassis from water, mud, and road salt.

Dampening Bushings & Rubber Buffers: Use Rubber-specific primer + Epoxy structural adhesive. Delivers exceptional rubber-to-metal bonding strength; resists continuous alternating loads without peeling.

The full JOME product catalogue named above is one part of the JOME production line. For the earlier discussion of Adhesive Application Solution for Solar PV Energy, follow the link, or browse the the full JOME bonding solutions line; specifications and samples go through the send drawings to the JOME team.

Verified JOME Engineering Grades & Specification Cross-Reference

To qualify an industrial-grade adhesive, potting compound, or thermal interface material for this application, compare verified Shanghai Jome Industrial Co., Ltd. (JOME) formulations below or explore our primary category hubs: Anaerobic Threadlockers & Retaining Adhesives and Industrial Structural Adhesives.

JOME Grade / SKUPolymer Chemistry & CureKey Verified SpecificationPrimary Industrial Application
JOM 3107Anaerobic Magnet Structural Bonding AdhesiveHigh impact & centrifugal shear (>20 MPa) | +150°C ratedServo motor, traction motor & humanoid robot rotor magnet bonding
JOME 1767 / JOME 2029A/B1K Heat-Cure & 2K High-Temp Motor EpoxyContinuous service up to +180–200°C | High Tg & chemical resistanceHigh-speed turbine rotors, rare-earth & ferrite magnet bonding
JOM 638High-Strength Cylindrical Bearing Retaining CompoundFills 0.05–0.25 mm radial clearances | Prevents fretting wearMotor shafts, harmonic drive bearings, gears, bushings & sleeves
JOM 263/277 & JOM 204/93Liquid Anaerobic & Microcapsule Pre-Coated ThreadlockersBreakaway torque 20–42 N·m | Oil-tolerant & dry-to-touch filmChassis bolts, robot joint fasteners, mass pre-coated screws

Interactive Engineering Tools: Master Substrate & Thermal Cross-Reference Chart · Potting Volume, Mix Ratio & ΔT Calculator · Industrial Adhesive Manufacturer Comparison

Work From Whatever You Have · Custom Formulation & Free Trial Samples

Need Technical Data Sheets (TDS) or Trial Samples for Line Qualification?

Share your substrate pair, operating temperature, or target cycle time—only Email and Application / Part Code are required. Our R&D engineers reply within 24 hours.

Matched JOME Industrial Formulations: For production bonding, potting, and sealing qualification in this application, evaluate Thermal conductive single-component RTV silicone adhesive(0.82W and 1.5W), Thermal conductive single-component RTV silicone adhesive(2.85W ), Two-component high thermal conductivity filling sealant (8.0 W/mK), and Thermal Conductive potting Silicone Compound(1.5W) (ISO 9001:2015 and CTI RoHS 2.0 verified; free engineering samples shipped via UPS freight collect).

Frequently Asked Engineering Questions

Which JOME adhesive or potting grades are recommended for nev adhesive application map | motor · battery · electronics · bo?

Depending on substrate pair, continuous operating temperature, and curing line constraints, Shanghai Jome Industrial Co., Ltd. (JOME) recommends evaluating JOM 3107, JOME 1767 / JOME 2029A/B, and JOM 638. Review our full specification table on this page or request a customized formulation sample.

Can JOME customize viscosity, cure speed, or thermal conductivity for our automated production line?

Yes. JOME's Shanghai RandD laboratory customizes A/B mix viscosity, thixotropic index, pot life, Shore hardness, and thermal filler loading (0.75 to 25.0 W/m·K) to match your dispensing equipment and environmental test standards.
