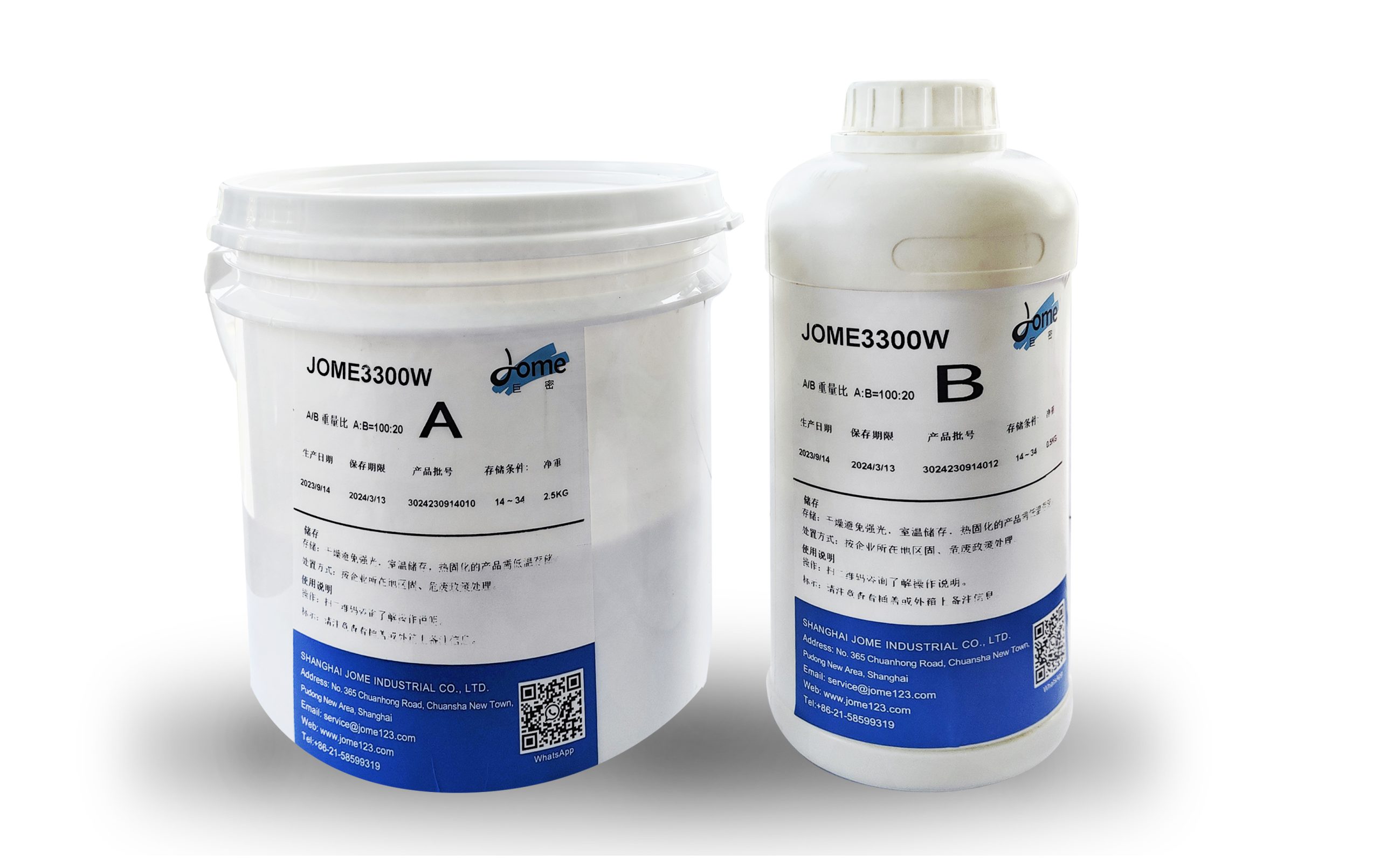

Thermally Conductive Epoxy Potting Compound（1.2W）

A two-part, thermally conductive epoxy potting compound for electronic encapsulation and heat dissipation.

FEATURES
Heat curing will bring high heat resistance
Excellent adhesion, anti-cracking
Low CTE linear expansion coefficient
Having a high thermal conductivity
Excellent electrical insulation, stability
Long-term use at -50 ℃ – 200 ℃
Very low water absorption, good waterproof, moisture resistance

product details

JOME 3113 A/B High-temperature two-component epoxy potting

PRODUCT DESCRIPTION

JOME 3113A/B is a two-component solventless, room temperature curing epoxy potting material for automotive, automotive electronics, power tools, reactors, instruments with high thermal conductivity

requirements of the product package protection, and has excellent adhesion and heat resistance.

FEATURES

Heat curing will bring high heat resistance

Excellent adhesion, anti-cracking

Low CTE linear expansion coefficient

Having a high thermal conductivity

Excellent electrical insulation, stability

Long-term use at -50 ℃ – 200 ℃

Very low water absorption, good waterproof, moisture resistance

TYPICAL PROPERTIES

Before cured	Item	Method	Unit	JOME 3113 A	JOME 3113 B
	Appearance	Visual inspection	—	Black Liquid	Beige paste
	Viscosity	GB/T 10247-2008	25℃ , mPa ·s	20,000±3,000	25
	Density	GB/T 13354-92	25℃ , g/cm3	2.35±0.05	0.93±0.05
	Mix rate	Mass ratio	Ratio=A:B	100 ：8
	Mix viscosity	GB/T 10247-2008	25℃ , mPa ·s	2,000±300
	Operation time	GB/T 10247-2008	25℃ , min	45
	Gel time	GB/T 10247-2008	60℃ , min	60
After cured	Hardness	GB/T 531.1-2008	Shore D	90
	Thermal conductivity	GB/T 10297- 1998	W/mK	1.2±0.1
	linear thermal expansion coefficient	GB/T 20673-2006	μm/（ m ，℃)	20
	glass transition temperature	DSC	℃	95

Apply for electronic componets

Shear strength	GB 6328-86	Mpa ，Fe-Fe	≥8
Shear strength	GB 6328-86	Mpa ，Al-Al	≥8
Dielectric strength	GB/T 1693-2007	kV/mm（25℃)	≥18
Loss factor	GB/T 1693-2007	（1MHz）(25℃)	0.09
Dielectric constant	GB/T 1693-2007	（1MHz）(25℃)	2.9
Volume resistance	GB/T 1692-92	DC500V,Ω· cm	1.00E +15
Applying temperature	GBT 20028-2005	℃	-50– 200

Note:

Theabovedata curing conditions tested were 100 ℃ * 2h
The measured data table is under a specific condition, for reference, the resulting data does not guarantee that theclient can fully consistent with theactual use.

Operation process

Preparation: Put A material original packaging barrels at 40℃ environment preservation 2 hours, after take out, compound viscosity is thinning, lower.

Or use directly at normal room temperature.

Mixing ：With the A component of the filler will contain the time to precipitate down, so use a stirrer to make the filler and resin liquid mixed evenly. ThenweighingA / B components with Ratio 100:8, mixingthoroughly for several minutes. After, the finished liquid will be ready for potting.

Component B may occur during storage or agglomeration of crystal (a normal case), if required before use crystalline placed in an oven at 60 ℃to melt it, and then cooled to room temperature and after use, which does not affect its performance.

The exposed component B will be hydrolyzed in moisture and the color of hydrolysate will show the color of white as friable powder.

Good potting device, if necessary, vacuum may continue to help increase the electrical properties of the device.

Apply for electronic componets Curing conditions Recommendedcuring process would be chosen as below:

25℃* 24h at room temperature

80℃ * 3h

100℃ * 2h, reach the heat resistance grade B;

100 ℃ * 2h + 120 ℃ * 1h , reach the heat resistance grade F;

If working temperature is below 150 ℃ , the final curing temperature can be ignored.

Packing and Stocking

Avoid the sun and heat, stock under sealing.

Shelf life at 25τ: Part A 12 months, part B 12 months;

If expired should be tested first.

Part A :20kg/plastic drum; Part B: 0.8kg/bottle or 2.4kg/pot

Limited warranty information—Please read carefully

The information contained herein is offered in good faith and is believed to be accurate. However, because conditions and methods of use of our products are beyond our control, this information should not be used in substitution for customer’s tests to ensure that JOME products are safe, effective,

and fully satisfactory for the intended end use.

Your exclusive remedy for breach of such warranty is limited to refund of purchase price or replacement of any product shown to be other than as warranted.
