High-strength 2-part epoxy structural adhesive
Description
JOME fast curing epoxy adhesive is a fast curing epoxy resin adhesive at room temperature. This two-component epoxy adhesive is designed to bond ceramic, metal, glass, plastic, rubber, paper, cloth and other products.
JOME transparent quick-fix epoxy adhesive cures without heat. After thoroughly mixing parts A and B at 1:1 (weight or volume ratio), the product solidifies in 5-120 minutes to form protection.
The cured glue has the following properties ：
Resistance to moisture, dirt, and other atmospheric components
High strength, excellent adhesion
Good pollution resistance and low
requirement for surface pretreatment
No solvent, no curing byproducts
Stable mechanical and electrical properties between -45 and 120℃
It has good adhesion to glass fiber cloth and steel plate
product details
FAST–CURING Epoxy Adhesive Series
Description
JOME fast curing epoxy adhesive is a fast curing epoxy resin adhesive at room temperature. This two-component epoxy adhesive is designed to bond ceramic, metal, glass, plastic, rubber, paper, cloth and other products.
JOME transparent quick-fix epoxy adhesive cures without heat. After thoroughly mixing parts A and B at 1:1 (weight or volume ratio), the product solidifies in 5-120 minutes to form protection.
The cured glue has the following properties ：
Resistance to moisture, dirt, and other atmospheric components
High strength, excellent adhesion
Good pollution resistance and low
requirement for surface pretreatment
No solvent, no curing byproducts
Stable mechanical and electrical properties between -45 and 120℃
It has good adhesion to glass fiber cloth and steel plate
| Test item |
Test standard |
Unit |
JOME 3002 A/B |
JOME 3005 A/B |
JOME 3225 A/B |
JOME 3007 A/B |
JOME 3228 A/B |
JOME 3090 A/B |
|
|
A |
Appearance |
Visual |
— |
Black or transparent |
Black or transparent |
white or black |
transparent
semi- thixotropic |
liquid transparent |
liquid transparent |
|
Viscosity |
GB/10247-
2008 |
Pa·s
（25℃) |
11-15 |
11-15 |
65-100 |
70-90 |
170-250 |
11-15 |
|
|
Density |
GB/T
13354-92 |
g/cm3
（25℃) |
1.15±0.05 |
1.15±0.05 |
1.25±0.05 |
1.15±0.05 |
1.10±0.05 |
1.10±0.05 |
|
|
B |
Appearance |
Visual |
— |
liquid transparent |
Colorless or
pale yellow transparent liquid |
Rice white slurry |
transparent
semi- thixotropic |
Transparent semi-fluid |
liquid transparent |
|
Viscosity |
GB/10247-
2008 |
Pa·s
（25℃) |
10-20 |
10-20 |
30-42 |
60-90 |
12-18 |
10-20 |
|
|
Density |
GB/T
13354-92 |
g/cm3
（25℃) |
1.02±0.05 |
1.15±0.05 |
1.25±0.05 |
1.02±0.05 |
1.10±0.05 |
1.06±0.05 |
|
Operating process
| Item |
Unit or condition |
JOME
3002 A/B |
JOME
3005 A/B |
JOME
3225 A/B |
JOME
3007 A/B |
JOME
3228 A/B |
JOME
3090 A/B |
| Mixing ratio | weight ratio | 100:100 | 100:100 | 100:100 | 100:100 | 100:100 | 100:100 |
| Mixing ratio | Volume ratio | 100:100 | 100:100 | 100:100 | 100:100 | 100:100 | 100:100 |
| Mixed viscosity | Pa ·s（25℃) | 11-13 | 11-13 | 60-80 | 70-90 | 90-110 | 11-13 |
| Mixed density | g/cm3（25℃) | 1.10 | 1.10 | 1.27 | 1.10 | 1.10 | 1.10 |
| Operating time(1) | min（25℃) | 1 | 2 | 3 | 2 | 20 | 35 |
| Tack free time(1) | min（25℃) | 2 | 5 | 7 | 5 | 50 | 90 |
| Initial curing time | 25℃/min | 5 | 10 | 15 | 10 | 80 | 120 |
(1) potting time is measure based on 2 g mixing quantity.
Measure each part and then mix thoroughly. Fastly bonding assemblies.
Typical application
T-type tube end cap bonding, circuit board lead or solder foot protection, bus bar PET bonding, insulation paper and silicon steel sheet bonding, crafts fixed bonding
Operation precautions
1、 When use gun to mix 50ml cartridge, should leave off the beginning mixed glue, in case the
glue will cur well. Pay attention to cartridge outlet seal, and timely change the static mixer.
2、 Use of bulk packaging, mixed sizing to quick weighing and mixing, and will cause bubbles; otherwise use of a two-component dispensing machine to get better property.
3、 The lower temperature will cause the curing speed slower and lower strength. To get stably property, need to control the room temperature.
4、 The curing process is an exothermic reaction, adhesive amount will affect the operating time, so the operation time of glue 2g is a reference time.
Typical performance
| Test item |
Test standard |
Unit |
JOME
3002 |
JOME
3005 |
JOME
3225 |
JOME
3007 |
JOME
3228 |
JOME
3090 |
|
Custom |
B0306614
T0306613 |
B0306623
W0306456 |
0306662 |
0306230 |
0306672 |
|||
|
Appearance |
Visual |
Black or
clear |
Black or
clear |
Black or
white |
Clear |
Clear |
clear |
|
| Hardness | GB/T531.1-2008 | Shore D | 80±5 | 80±5 | 80±5 | 80±5 | 80±5 | 80±5 |
| Shear
strength |
GB6328-86 |
Mpa，Al/Al |
12 |
12 |
12 |
12 |
13 |
13 |
| Shear
strength |
GB6328-86 |
Mpa ，Fe/ Fe |
13 |
13 |
13 |
13 |
15 |
15 |
|
Shear strength |
GB6328-86 |
Mpa ，Fe/ Fe，
Surface polished |
18 |
18 |
18 |
18 |
20 |
20 |
|
Coefficient of expansion |
GB/T20673-2006 |
μm/（m，℃) |
100 |
100 |
100 |
100 |
100 |
100 |
| Water
absorption |
GB/T8810-2005 |
24h，25℃ , % |
<0.3 |
<0.3 |
<0.3 |
<0.3 |
<0.3 |
<0.3 |
| Dielectric
strength |
GB/T1693-2007 |
kV/m（25℃) |
>20 |
>20 |
>20 |
>20 |
>20 |
>20 |
|
Loss factor |
GB/T1693-2007 |
（1MHz）
(25℃) |
0.014 |
0.014 |
0.014 |
0.014 |
0.014 |
0.014 |
| Dielectric
constant |
GB/T1693-2007 |
（1MHz）
(25℃) |
3.53 |
3.53 |
3.53 |
3.53 |
3.53 |
3.53 |
| Volume
resistance |
GB/T1692-92 |
（DC500V）
Ω· cm |
1.2×101
5 |
1.2×1015 |
1.2×1015 |
1.2×1015 |
1.2×1015 |
1.2×1015 |
Marked: all data were tested after curing 7days in 25 ℃ and 55% room humity.
Package

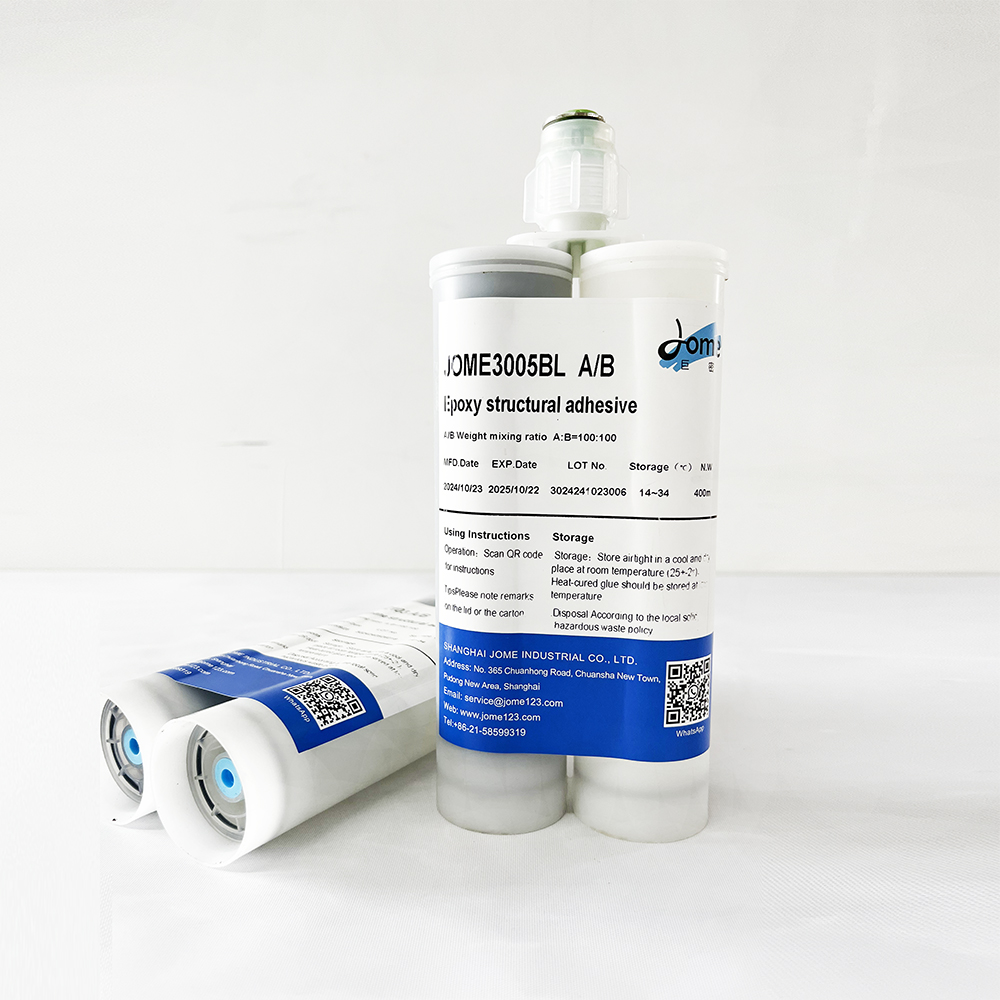

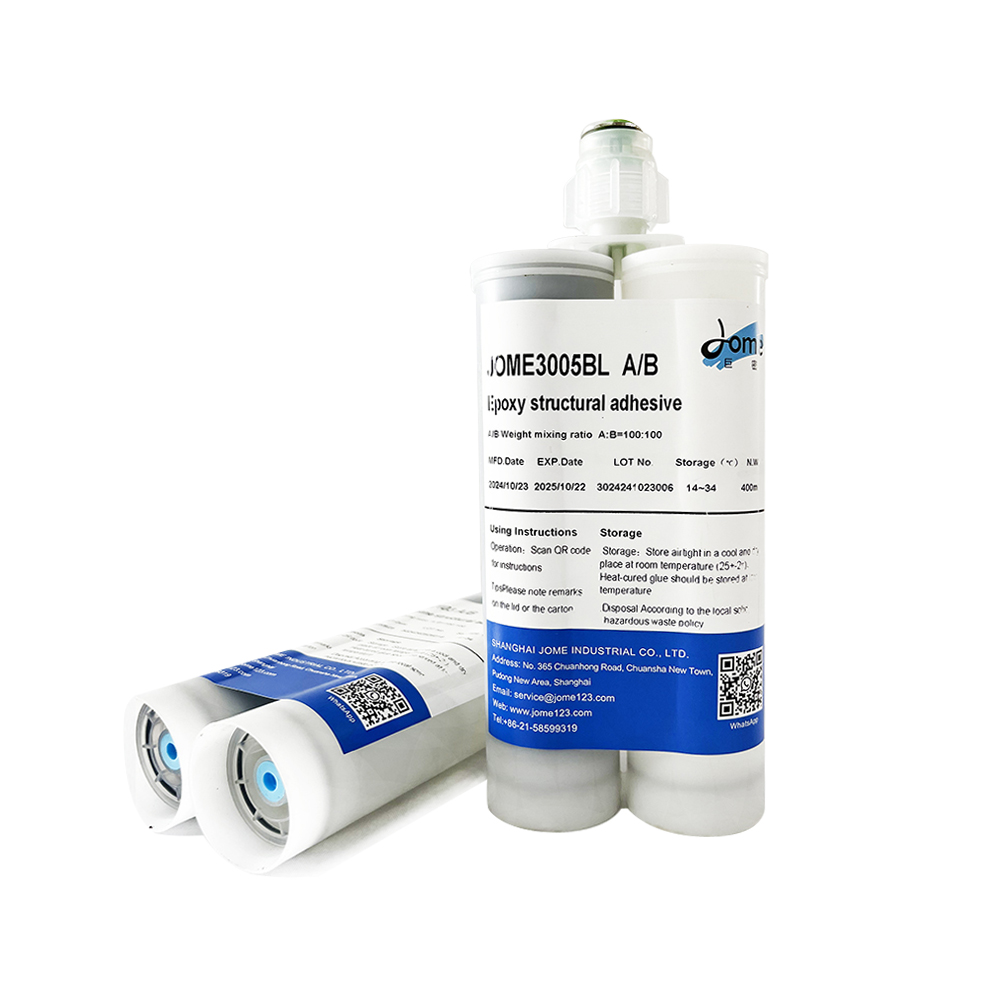

1、 50ml Cartridge( A 25ml/B 25ml) ：
2、 400ml Cartridge( A 200ml/B 200ml) ：
3、 Part A：1 kg／drum；part B：1kg/drum；
4、 Part A：20 kg／drum；part B：20kg/drum；
Storage and Transport
1、 Components A and B should be kept away from light and heat and sealed (can be transported and stored as non-dangerous goods);
2、 Storage period component A: 1 year, Component B: 1 year (25℃).
